UVB 340nm 3535 SMD LED Diode Specs
| Khoom npe | UVB 340nm 3535 SMD LED Diode |
| Tshooj naj npawb | GD-3535U340-1CD-P2B0B |
| Chips hom | Korea PW 20mil chips |
| Chaw tsim tshuaj paus ntawm Label |
GMKJ Brand Tsim los ntawm Guangmai Technology Co., Ltd |
| Tswv yim |
4-6vdc nrog IFmax 150mA |
| Luminous / Radiant Flux | 20-30mW ntawm 100mA |
| Teeb pom kev zoo | Tsis pom UVB leds, tsis muaj LM / W muaj |
| Wavelength / Xim |
Peak wavelength 340-345nm
Lwm cov wavelength muaj nyob ntawm no hauv UVB thiab UVC: 225-235nm; 250-260nm; 260-270nm; 270-280nm; 290-300nm; 310-315nm; 320-325nm; 340-345nm; |
| Hwj chim |
0.5-0.7 hli |
| Pob khoom |
ALN ceramic, 3.5x3.5mm loj smd coj |
| Lub teeb pom kev zoo |
120℃teeb pom kev zoo lub kaum sab xis, tiaj tus quartz iav lo ntsiab muag (Cov Tshuag tsis tu ncua) 60℃teeb pom kev zoo, dome iav lens (MOQ 1000 pcs) 30℃teeb pom kev zoo, dome iav lens (MOQ 1000 pcs) |
| Nqe | Thov hu rau GMKJ rau tus nqi |
| Min txiav txim kom muaj nuj nqis |
Nyob ntawm cov khoom muaj nyob: Yog tias peb tau npaj cov khoom xa tuaj, ces txawm tias 100 pcs nrog cov qauv kuaj lub hom phiaj yog txais tau ntawm no. Yog tias tsis muaj Tshuag, ces peb xav tau min xaj kom muaj tsawg kawg yog 1,000 pcs nrog 1 yob pob. |
| Warranty | 4 xyoo |
| Kev pabcuam OEM |
1. SKD qhov chaw muaj; 2. Customized LED array nrog qhov loj me koj xav tau yog OK ntawm no. |

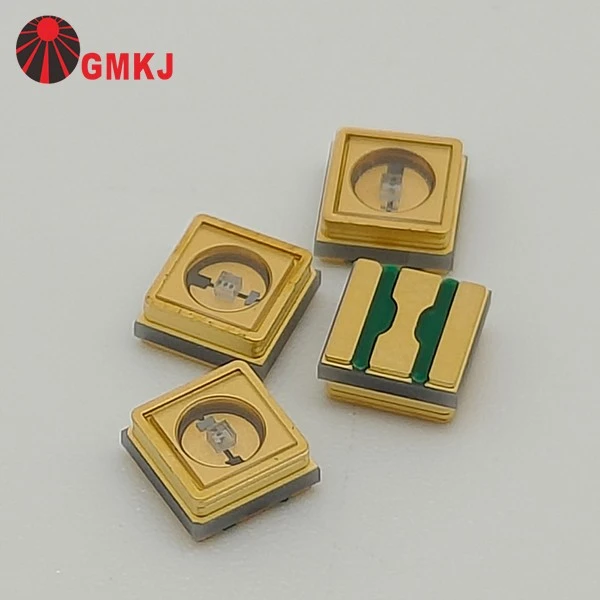

UVB 340nm 3535 SMD LED Diode pdaim duab
 |
 |
|
120℃teeb pom kev zoo lub kaum sab xis, tiaj tus quart iav lens |
30 thiab 60℃teeb pom kev zoo lub kaum sab xis, tiaj tus quart iav lens (tsis tas li, min order kom muaj nuj nqis 1000 pcs) |
Aluminium LED PCBA Ua los ntawm GMKJ (PCB kos duab thiab BOM muab los ntawm peb cov neeg siv khoom)
GMKJ muaj peb tus kheej-tus kheej SMT LED pcb pawg thawj coj ua kab sib dhos, suav nrog kev xaiv tsis siv neeg thiab tso tshuab, tsis siv neeg soldering paste siv tshuab, kub kub reflow qhov cub.
Peb muaj peev xwm ua tau LED pcb board sib dhos rau peb cov neeg siv khoom yog tias lawv muaj peev xwm muab peb cov pcb boards kos duab thiab pcb board BOM daim ntawv teev npe.
UVC thiab UVB smd leds soldered nrog txhuas hnub qub pcb boards
UVB 340nm 3535 SMD LED Diode Dimension
UVB 340nm 3535 SMD LED DiodeHluav taws xob Spec
|
Parameter |
Cim |
Cov xwm txheej |
Min |
Avg. |
Max |
Chav tsev |
|
Forward Voltage |
VF |
IF=100mA |
4.00 |
-- |
6.00 |
V |
|
Thermal Resistance Junction To Board |
RΘJ-B |
IF=100mA |
-- |
5 |
-- |
degree / W |
|
Radiant Flux |
Φe |
IF=100mA |
20 |
30 |
mW |
|
|
Peak wavelength |
λp |
IF=100mA |
340 |
345 |
nm |
|
|
Kub Coefficient ntawm Forward Voltage |
∆VF/∆T |
IF=100mA |
−− |
-2 |
−− |
mV / degree |
|
Rov qab tam sim no |
IR |
VR=5V |
−− |
−− |
10 |
μ A |
|
Saib lub kaum sab xis [1] |
2Θ1/2 |
IF=100mA |
−− |
120 |
−− |
De |
Nrhiav kom paub ntxiv
Koj tuaj yeem rub tawm cov ntaub ntawv los ntawm nplooj ntawv no rau lwm yam SMD LEDs.
Yog tias koj xav tau cov ntsiab lus ntxiv xws li nqe, min txiav txim kom muaj nuj nqis, Tshuag xwm txheej thiab lub sijhawm ua haujlwm, thov hu rau GMKJ LEDs ncaj qha!
Peb ib txwm nyob ntawm no rau koj!
