1W 3W 365nm SMD LED rau Nyiaj Nthuav Khoom Specs
| Khoom npe | 1W 3W 365nm SMD LED rau Kev Ntsuas Nyiaj |
| Tshooj naj npawb | GT-3535P365-1CC0-G1D5M |
| Chips hom | Taiwan Epiled chips sab hauv |
| Chaw tsim tshuaj paus ntawm Label |
GMKJ LEDs Tsim los ntawm Guangmai Technology Co., Ltd |
| Tswv yim |
3.2-3.6vdc nrog IFmax 700mA |
| Luminous / Radiant Flux | Yog 700mA, Radiation zog: 1000-1400mW |
| Teeb pom kev zoo | UVA insiable lub teeb nrog qis lossis tsis muaj LM / W |
| Wavelength / Xim |
Peak wavelength: 365-370nm |
| Hwj chim |
Max 3 watt |
| Pob khoom |
ALO ceramic, 3.5x3.5mm smd coj, nrog dome silicone lens |
| Lub teeb pom kev zoo |
120℃teeb pom kev zoo kaum sab xis |
| Nqe | Thov hu rau GMKJ rau tus nqi |
| Min txiav txim kom muaj nuj nqis |
Nyob ntawm cov khoom muaj nyob: Yog tias peb tau npaj cov khoom xa tuaj, ces txawm tias 100 pcs nrog cov qauv kuaj lub hom phiaj yog txais tau ntawm no. Yog tias tsis muaj Tshuag, ces peb xav tau min order kom muaj tsawg kawg yog 2,000 pcs. |
| Warranty | 4 xyoo |
| Kev pabcuam OEM |
1. SKD qhov chaw muaj; 2. Customized LED array nrog qhov loj koj xav tau yog OK ntawm no. |
GMKJ UVA 3535 SMD LED tag nrho series pdaim duab
 |
 |
|

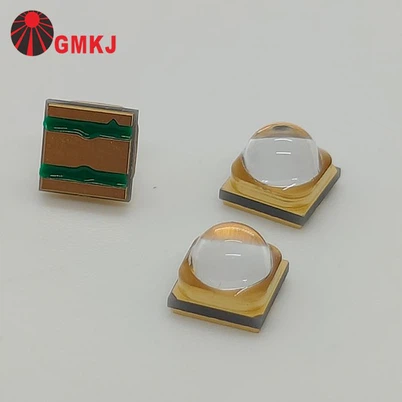

120℃teeb pom kev zoo kaum sab xis Dome silicone lens UVA 365nm 3535 smd leds |
60℃teeb pom kev zoo kaum sab xis Quartz iav lens UVA 365nm 3535 smd leds |
 |
 |
|
120℃teeb pom kev zoo lub kaum sab xis, lub qhov rais tiaj tus Quartz iav lens UVA 365nm 3535 smd leds |
30℃teeb pom kev zoo kaum sab xis Dome silicone lens UVA 365nm 3535 smd leds |
Aluminium LED PCBA Ua los ntawm GMKJ (PCB kos duab thiab BOM muab los ntawm peb cov neeg siv khoom)
GMKJ muaj peb tus kheej -tus kheej SMT LED pcb pawg thawj coj ua kab sib dhos, suav nrog kev xaiv tsis siv neeg thiab tso tshuab, tsis siv neeg soldering paste siv tshuab, kub kub reflow qhov cub.
Peb muaj peev xwm ua tau LED pcb board sib dhos rau peb cov neeg siv khoom yog tias lawv muaj peev xwm muab peb cov pcb boards kos duab thiab pcb board BOM daim ntawv teev npe.
1W 3W 365nm SMD LED rau Qhov Ntsuas Qhov Ntsuas
1W 3W 365nm SMD LED rau Kev Ntsuas NyiajHluav taws xob / Spectrum Distribution Specs
|
Parameter |
Cim |
Cov xwm txheej |
Min |
Avg. |
Max |
Chav tsev |
|
Forward Voltage |
VF |
IF=700mA |
3.20 |
-- |
3.80 |
V |
|
Radiant Flux |
Φe |
IF=700mA |
1000 |
1400 |
mW |
|
|
Peak wavelength |
λp |
IF=700mA |
365 |
370 |
nm |
|
|
Kub Coefficient ntawm Forward Voltage |
∆VF/∆T |
IF=700mA |
−− |
-2 |
−− |
mV / degree |
|
Rov qab tam sim no |
IR |
VR=5V |
−− |
−− |
10 |
μ A |
|
Saib lub kaum sab xis [1] |
2Θ1/2 |
IF=700mA |
−− |
120 |
−− |
Deg |
|
Thermal Resistance Junction To Board |
RΘJ-B |
IF=700mA |
-- |
6.5 |
-- |
degree / W |
Kev ua tau zoo ntawm 365 nm UVA LEDs hauv Cov Ntawv Thov Tseem Ceeb
Dab tsi yog qhov ua tau zoo rau UVA 365nm leds hauv txiaj ntes, UV daim tawv nqaij tsom rau kev kuaj pom pob txuv, photocatalytic cua purifier?
✅ 1. Cov khoom siv nyiaj txiag
Lub hom phiaj:Qhia cov yam ntxwv kev ruaj ntseg (fluorescent fibers, inks) ntawm daim ntawv nyiaj.
Cov yam ntxwv ua haujlwm:
Muaj zog UV tso zis ntawm 365 nm:Muaj tseeb excites kev ruaj ntseg inks thiab fibers tsim los rau qhov tseeb UVA excitation.
High Contrast Fluorescence:Ua kom pom tseeb, siab - pom qhov sib txawv ntawm kev tiv thaiv - cov yam ntxwv cuav.
Low Visible Light Leakage:Minimizes qhov muag strain thiab txhim kho kev tshawb pom tseeb.
Txhim khu kev ntseeg tau ntev - Lub Sijhawm Stability:Qhov tseem ceeb rau kev siv tas mus li lossis rov siv dua hauv kev lag luam thiab kev lag luam ib puag ncig.
Cov txiaj ntsig tseem ceeb:
365 nm UVA LEDs maximize anti-cov ntaub ntawv pov thawj rhiab heev thiab raug piv rau ntev dua- wavelength UV (xws li, 395 nm).
✅ 2. Kev tsom xam ntawm daim tawv nqaij UV (Dawb pob ntxau)
Lub hom phiaj:Tshawb xyuas pob txuv-txog porphyrins, pigmentation, roj faib, thiab cov yam ntxwv ntawm daim tawv nqaij.
Cov yam ntxwv ua haujlwm:
Fluorescence Excitation:365 nm zoo excites porphyrins tsim los ntawmPropionibacterium pob txuv, ua kom pom cov qauv fluorescence siv hauv kev ntsuam xyuas pob txuv.
Contrast Visualization:Txhim khu kev pom kev pom ntawm sebum, pore kev ua si, thiab zais pigmentation uas tsis pom nyob rau hauv ib txwm teeb.
Safe UVA Band:Tsis pub dhau UVA ntau yam uas feem ntau siv rau kev kuaj mob dermatological nrog kev tswj hwm thiab cov lim dej tsim nyog.
Compatibility nrog lim:Ua haujlwm zoo nrog Ntoo lub teeb lim kom cais UVA fluorescence.
Cov txiaj ntsig tseem ceeb:
Muab cov ncauj lus kom ntxaws fluorescence-raws li kev tshuaj xyuas ntawm daim tawv nqaij, ua rau cov kws kho mob thiab cov kws kho tawv nqaij soj ntsuam cov kev ua pob txuv thiab lwm yam mob uas muaj qhov pom tseeb dua.
✅ 3. Photocatalytic Cua Purifiers
Lub hom phiaj:Qhib photocatalyst (feem ntau TiO₂) kom decompose VOCs, kab mob, kab mob, thiab tsw.
Cov yam ntxwv ua haujlwm:
Ua kom muaj txiaj ntsig Photocatalyst:365 nm UV muaj zog ua kom TiO₂ catalysts, tsim hydroxyl radicals thiab superoxide ions uas rhuav tshem cov pa phem.
Sustained UV Intensity:Cov zis UV ruaj khov ua kom cov tshuaj tiv thaiv catalytic tsis tu ncua thiab ua haujlwm kom huv zoo ib yam.
Enhanced Air Quality Efficiency:Nce tus nqi ntawm decomposition rau cov organic contaminants piv nrog ntev - wavelength lub teeb qhov chaw.
Tsawg Kub Emission:LED-raws li UVA qhov chaw txo cov thermal load piv nrog cov teeb mercury ib txwm muaj.
Cov txiaj ntsig tseem ceeb:
365 nm UVA LEDs optimize photocatalytic cov tshuaj tiv thaiv, txhim kho kev ua kom huv huv, txo cov pa phem, thiab txuas ntxiv lub neej catalyst.
Nrhiav kom paub ntxiv
Koj tuaj yeem rub tawm cov ntaub ntawv los ntawm nplooj ntawv no rau lwm yam SMD LEDs.
Yog tias koj xav tau cov ntsiab lus ntxiv xws li nqe, min txiav txim kom muaj nuj nqis, Tshuag xwm txheej thiab lub sijhawm ua haujlwm, thov hu rau GMKJ LEDs ncaj qha!
Peb ib txwm nyob ntawm no rau koj!
