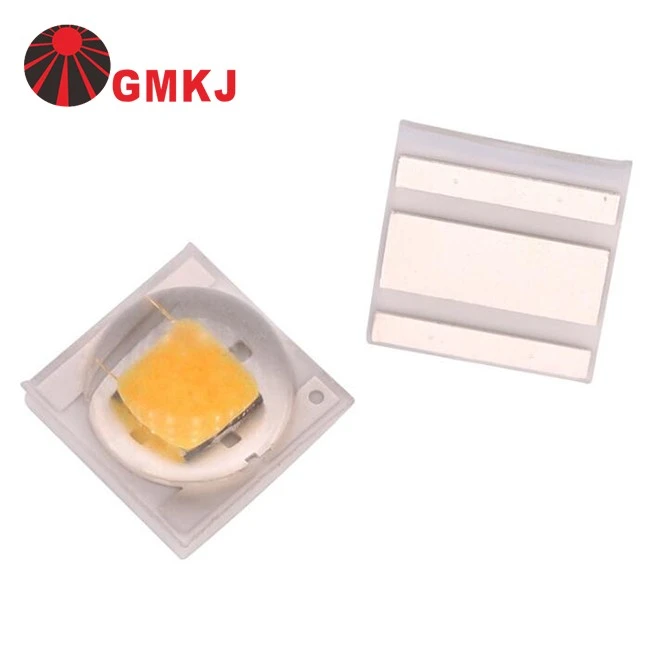

Guangmai Technology yog cov kws tshaj lij hauv kev ua Lattice zog 3535 smd coj ntsug nti rau LED teeb lub teeb.
Product Description
Lub Zog: 1- 3w
CCT: 2600 - 7000K
View Angle:120° 90° 60°
3 xyoo warranty
LM - 80; Raws li RoHS
·high luminous efficacy 160lm/w
·ceramic base with high heat conductivity
·flip Chip Technology, no gold wire soldering
·operating current 350 - 700mA
·>50000Hrs
·RoHScompliant, LM - 80
| GT - 3535 - FLIP35 - 1W | 1 - 2W | dawb 2700 - 6500k | Longda | 35 * 35 hli | 3 - 3.4VDC | 300 - 600mA | 140 - 150 LM |
| GT - 3535 - FLIP43 - 3W | 1 - 3W | dawb 2700 - 6500k | Longda | 43 * 43 hli | 3 - 3.6VDC | 300 - 800mA | 150 - 160 LM |
| GT - 3535 - FLIP55 - 4W | 1 - 4W | dawb 2700 - 6500k | Longda | 55 * 55 hli FLIP | 3 - 3.6VDC | 300 - 1200mA | 170 - 180 LM |
| GT - 3535 - FLIP55 - 5W | 1 - 5W | dawb 2700 - 6500k | Sanan | 55 * 55 hli FLIP | 3 - 3.6VDC | 1500 mA | 400 - 600 LM |
| GT - 3535 - OSR30 | 1 - 2W | dawb 2700 - 6500k | Osram | 30 * 30 hli | 3 - 3.6VDC | 300 - 600mA | 140 - 150 LM |
| GT - 3535 - OSR40 | 1 - 4W | dawb 2700 - 6500k | Osram | 40 * 40 hli | 3 - 3.6VDC | 300 - 1000mA | 155 - 170 LM |
| GT - 3535R - G42 | 1 - 3W | RED 620 - 630nm | Epiles | 42 * 42 hli | 2 - 2.4VDC | 300 - 700mA | 40 - 60 LM |
| GT - 3535R - G42 - 660 | 1 - 3W | Sib sib zog nqus liab 650 - 660nm | Epiles | 42 * 42 hli | 2 - 2.4VDC | 300 - 700mA | 30 - 50 LM |
| GT - 3535G - G45 | 1 - 3W | Ntsuab 520 - 530nm | Epiles | 45 * 45 hli | 3 - 3.4VDC | 300 - 700mA | 80 - 120 LM |
| GT - 3535B - G45 | 1 - 3W | Xiav 455 - 465nm | Epiles | 45 * 45 hli | 3 - 3.4VDC | 300 - 700mA | 20 - 30 LM |
| GT - 3535Y - J42 | 1 - 3W | Daj 585 - 595nm | Epistar | 42 * 42 hli | 2 - 2.4VDC | 300 - 700mA | 30 - 50 LM |
| Yam khoom | CCT (K) | CRI | φ (lm) | Hwj chim (W) | VF (V) | IF (mA) |
| GMKJ 1 - 3w 3535 smd coj | 2900 - 3200 | 80 | 110 - 130 | 1W | 2.8 - 3.2 | 350/700 |
| 4000 - 4500 | 70 | 130 - 150 | 1W | 2.8 - 3.2 | 350/700 | |
| 5000 - 5500 | 70 | 130 - 150 | 1W | 2.8 - 3.2 | 350/700 | |
| 6000 - 6500 | 70 | 130 - 150 | 1W | 2.8 - 3.2 | 350/700 |
Lattice zog 3535 smd coj ntsug nti rau LED teeb 1W 350mA specs:
Parameter | Cim | Cov xwm txheej | Min | Avg. | Max | Chav tsev |
Forward Voltage | VF | IF=350mA | 2.80 | - - | 3.40 | V |
Thermal Resistance JunctionTo Board | RΘJ - B | IF=350mA | - - | 8 | - - | degree / W |
Luminous Flux | Φv | IF=350mA | 140 | 150 | lwm lm | |
Xim kub | CCT | IF=350mA | 7000 | 8000 | K | |
CRI | Ra | IF=350mA | 70 | - - | - - | - - |
Kub Coefficient ntawm Forward Voltage | ∆VF/∆T | IF=350mA | −− | - 2 | −− | mV / degree |
Rov qab tam sim no | IR | VR=5V | −− | −− | 10 | μA |
Saib lub kaum sab xis[1] | 2Θ1/2 | IF=350mA | −− | 120 | −− | Deg |
Lattice zog 3535 smd coj ntsug nti rau LED teeb lub teebdaim ntawv thov
Sab nraum zoov architectural teeb pom kev zoo; txoj kev teeb, teeb pom kev, phab ntsa ntxhua khaub ncaws; coj mus muag teeb pom kev zoo; general illumination; hniav teeb pom kev zoo; teeb pom kev zoo; theem teeb pom kev zoo; teeb liab teeb pom kev zoo
Hais txog Guangmai LED / GMKJ LED
Kev xa khoom:
Txoj kev them nyiaj:
Daim npav rho nyiaj, e - kuaj xyuas, xa nyiaj hauv txhab nyiaj / xaim xaim, Alipay, Wechat them nyiaj, Western Union, thiab lwm yam.
FAQ:
Q1; Koj puas yog lub Hoobkas lossis cov tub luam?
A1: Guangmai Technology yog ib lub tuam txhab kev lag luam thiab kev lag luam sib koom ua ke, tsom rau R& D, kev tsim khoom thiab muag ntawm LED teeb qhov chaw / txoj kev teeb modules thiab lwm yam khoom txhawb nqa.
Q2: Yog tias kuv xav tau cov lus hais, kuv yuav ua li cas?
A2: Thov muab peb qhov ntau, qhov loj thiab cov khoom ntawm cov khoom koj xav tau. Yog tias koj xav tau customization, thov hu rau peb.
Q3: Lub sijhawm npaj yog dab tsi?
A3: Lub sijhawm nyob ntawm koj qhov ntau, tab sis nyob rau hauv qhov xwm txheej ib txwm, cov qauv xaj yuav siv sijhawm 3 - 5 hnub ua haujlwm, thiab kev txiav txim ntau yuav ua tiav hauv 15 - 25 hnub.
Q4: Kuv puas tuaj yeem hloov xim kub lossis kho qhov module?
A4: Raws li ib txwm muaj, peb txhawb cov khoom lag luam, nyob ntawm koj qhov ntau.
Daim ntawv qhia:
Yog xav paub ntxiv, thov hu rau Guangmai Tech ncaj qha.
Koj tuaj yeem download tau lubEnglish Version datasheetntawmLattice zog 3535 smd coj ntsug nti rau LED teeb lub teeblos ntawm lub taub hau ntawm nplooj ntawv no.
