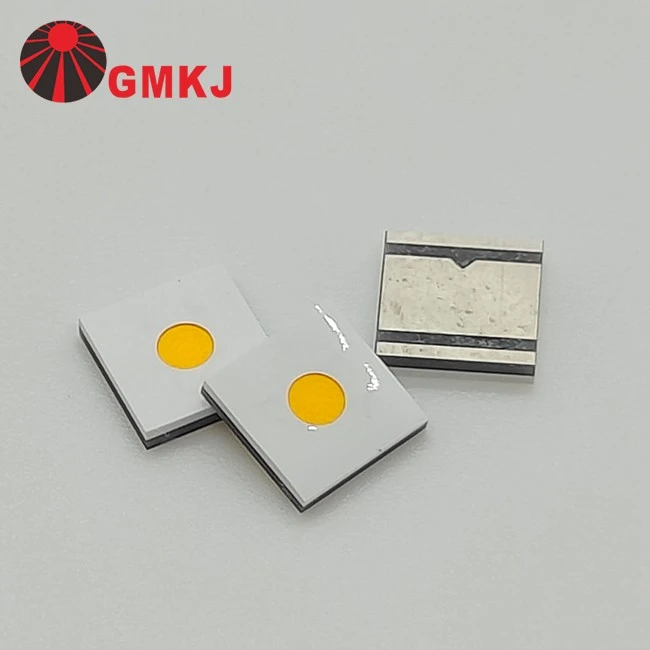

3535 Ceramic 10W Round Dawb LED rau siab -Spotlights thiab Ntev -Tso teeb pom kev zoo
| Parameter | Specification |
| Tshooj Naj Npawb | GDY-3535WXXX-1CC-S1E5YBP-R70 |
| LED zog | 10W |
| LED Hom | Round siab zog LED |
| CCT(k) | 3000k/4000k/5000k/6000k/7000k |
| CRI | 70/80/90 |
| Fais fab tuag | 3.2-3.8V |
| Tsav tam sim no (mA) | Max mus txog 3000mA |
| Luminous Flux (lm) | 1000-1200lm ntawm 3000mA |
| Emitting cheeb tsam (mm) | 1.3 hli |
| Pob khoom | Ceramic substrate |
| Forward voltage (Vf) | 3V |
| Daim ntawv thov | Professional Spotlights & Searchlights/Stadium & High-Bay Lighting |

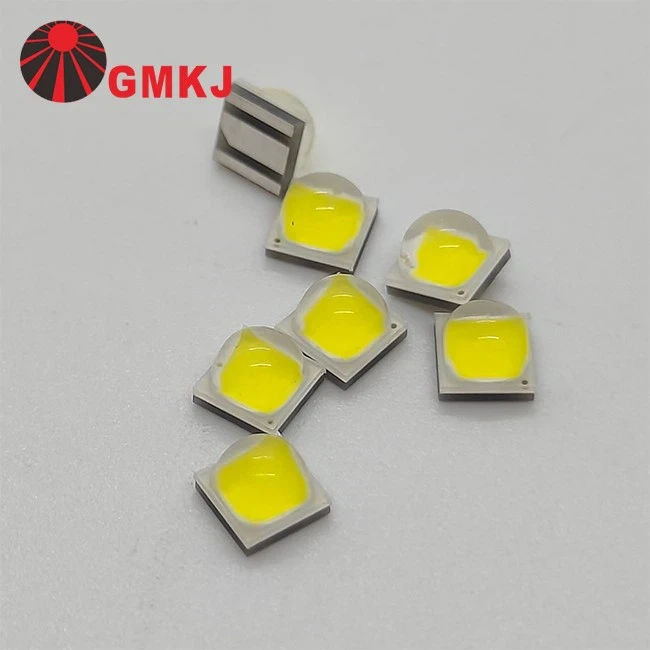

Round LED vs Standard 3535 LED
| Feature | Standard 3535 LED 10W | GMKJ 3535 Round LED 10W |
| Tshooj Naj Npawb | GDY-3535W600-1CD0-J2G7DM-R70 | GDY -5050W600-1CC-S1E5YBP-R70 |
| Duab |
|
|
| Emitter Shape | Pas duab plaub / square emitting cheeb tsam | Compact puag ncig emitting nto |
| Optical Coupling | General - hom phiaj kho qhov muag; kev siv zog ntxiv mus ncig qhov chaw | Zoo meej kev sib tw nrog ob qho tib si optics, xa cov kab teeb ci huv si |
| Ntev - Tso Teeb Pom Kev | Kev ua tau zoo nyob ntawm kev tsim lub lens sab nraud | Ua ntej- ua kom zoo rau kev taw qhia & ntev- teeb pom kev deb, tsawg dua teeb pom kev |
| Beam Angle | 120 nrog dome | Flat 120 |
| Optical System | Fits pa txheem fixtures | Optimized rau compact optical sib dhos |
| Cov Khoom Siv Zoo Tshaj Plaws | General teeb pom kev zoo, vaj huam sib luag teeb, linear fixtures | Cov teeb pom kev zoo, teeb pom kev, kev taw qhia ntev - teeb pom kev zoo |

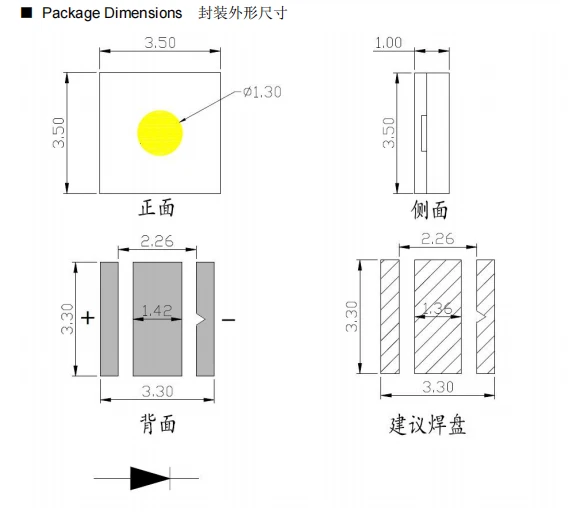

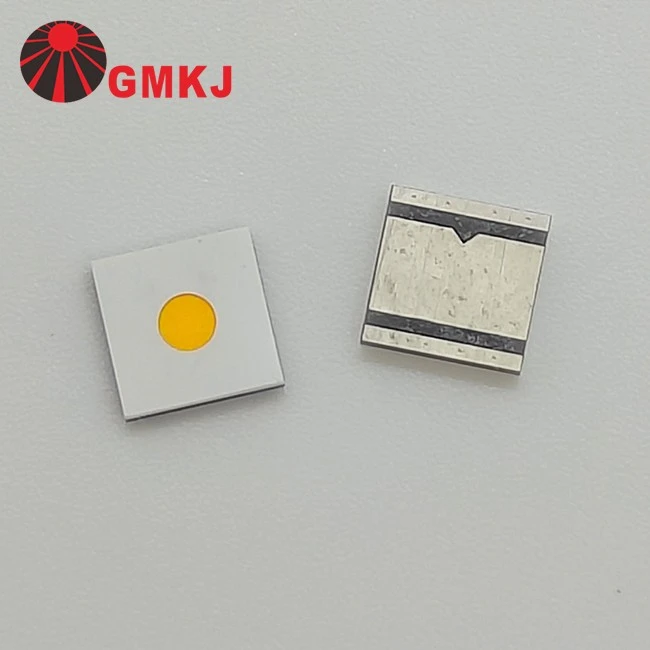

Compact 3535 Round Emitter Tsim
15W 9V 3535 Ceramic SMD High Power Dawb LED Hluav Taws Xob Parameters
|
Parameter |
Cim |
Cov xwm txheej |
Min |
Avg. |
Max |
Chav tsev |
| Forward voltage (Vf) |
VF |
IF=3000mA |
3.20 |
-- |
3.80 |
V |
|
Thermal Resistance Junction To Board (热阻) |
RΘJ-B |
IF=3000mA |
-- |
2 |
-- |
degree / W |
|
Luminous Flux (流明) |
Φe |
IF=3-00mA |
1000 |
-- |
1200 |
LM |
|
GDY-3535W300-1CC0-SA55YBP-R70
|
λp |
IF=3000mA |
2800 |
-- |
3200 |
K |
|
GDY-3535W400-1CC0-SA55YBP-R70
|
λp |
IF=3000mA |
3700 |
-- |
4300 |
K |
|
GDY-3535W500-1CC0-SA55YBP-R70
|
λp |
IF=3000mA |
4700 |
-- |
5300 |
K |
|
GDY-3535W650-1CC0-SA55YBP-R70
|
λp |
IF=3000mA |
6200 |
-- |
6800 |
K |
|
CRI
(显色指数)
|
Ra
|
IF=3000mA | -- | 70 | -- | |
|
Rov qab tam sim no (反向漏电流) |
IR |
VR=5V |
−− |
−− |
10 |
μ A |
|
Saib lub kaum sab xis [1] (发光角度) |
2Θ1/2 |
IF=3000mA |
−− |
120 |
−− |
Deg |
Xav tau lub siab -Siv Round LED rau koj qhov project teeb pom kev zoo?
GMKJ muab 3535 ceramic Round LED cov kev daws teeb meem rau cov ntawv thov uas xav tau kev siv lub teeb ci siab, tswj kev ua haujlwm ntawm beam thiab ntev - teeb pom kev deb.
Hu rau peb pab pawg engineering rau kev qhia tshwj xeeb, cov lus pom zoo kho qhov muag lossis cov qauv ntsuas.
Muaj kev txhawb nqa
Dawb LED Specification Xaiv
Xim kub Customization
LED Module Tsim
Kev them nyiaj yug PCB Layout
Thermal Performance Optimization
Kev Pabcuam Kev Xeem
