Khoom Description
12W 5050 RGBW RGBWW SMD LED Diode 700mA Specs:
| Khoom npe | 12W 5050 RGBW RGBWW SMD LED Diode 700mA |
| Tshooj naj npawb | GD-5050RGBW3-4BC0-SA38M-R80 |
| Chips hom | Tuam Tshoj Sanan 38mil ntsug nti, zoo teeb pom kev zoo nrog seminardy coj lens |
| Tswv yim |
Liab nrog 2-2.4vdc; Ntsuab, xiav thiab dawb nrog 2.8-3.2vdc; Txhua xim max 700mA |
| Flux |
Liab: 100-120lm; Ntsuab: 180-220lm; Xiav: 40-60lm; Dawb: 180-220lm |
| Warranty | 4 xyoo ntev lub sijhawm lav tag nrho |
| Xim |
Liab: 620-630nm; Ntsuab: 520-530nm; Xiav: 450-465nm; Dawb muaj nrog: 1. 3000K Ra>80, 2. 4000K Ra>80 3. And 6500K Ra>70 |
| Hwj chim |
4 * 3W |
| Ceramic pob khoom |
Ceramic pob; Ob lub dome silicone lens thiab lub pob tiaj tus 5050 smd leds muaj. |
| Lub teeb pom kev zoo |
120 degree dome silicone lens lossis 120 degree tiaj pob tsis muaj lens |
| Hom thiab manufacturers | GMLEDs, GMKJ |
| Warranty | 3 xyoo |
| Kev pabcuam OEM |
1. SKD qhov chaw muaj; 2. Aluminium pcb boards LED sib dhos kev pabcuam kuj muaj nyob ntawm no. |

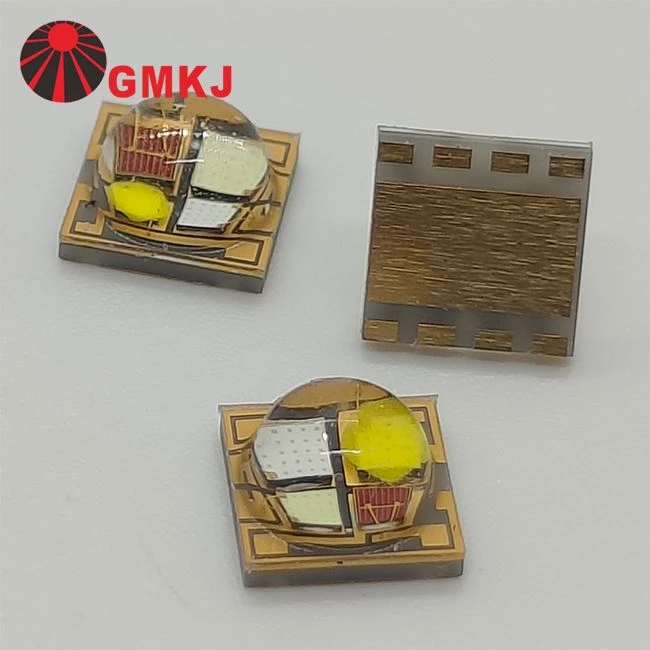

12W 5050 RGBW RGBWW SMD LED Diode 700mA duab:
12W 5050 RGBW RGBWW SMD LED Diode 700mA hnub qub pcb boards soldering kev pab cuam:
12W 5050 RGBW RGBWW SMD LED Diode 700mA qhov ntev:
12W 5050 RGBW RGBWW SMD LED Diode 700mA Hluav Taws Xob Specs:
■ Kev Ntsuas Siab Tshaj Plaws (Ntawm TA =25 degree)
|
Parameter |
Cim |
Kev ntsuas |
Chav tsev |
|
DC Forward Current |
IF |
700 |
m A |
|
Peak pulse tam sim no * |
IFP |
1400 |
m A |
|
Lub zog Dissipation |
PD |
3 |
W |
|
Rov qab Voltage |
VR |
5 |
V |
|
Rov qab tam sim no |
IR |
10 |
μ A |
|
Kev khiav hauj lwm qhov kub thiab txias |
TOPR |
-40 ~ +85 |
degree |
|
Cia qhov kub thiab txias |
TSTG |
-40 ~ +100 |
degree |
|
LED Junction Temperature |
TJ |
120 |
degree |
■ Hluav taws xob / Optical yam ntxwv- (Ntawm TA=25 degree)
|
Parameter |
Cim |
Cov xwm txheej |
Emitting Xim |
Tus nqi |
Chav tsev |
||
|
Min |
Avg. |
Max |
|||||
|
Forward Voltage |
VF |
IF=700mA |
R |
2.00 |
-- |
2.80 |
V |
|
G |
3.00 |
-- |
3.80 |
||||
|
B |
3.00 |
-- |
3.80 |
||||
|
W |
3.00 |
-- |
3.80 |
||||
|
Luminous Flux |
Φv |
IF=700mA |
R |
100 |
-- |
120 |
lwm lm |
|
G |
180 |
-- |
220 |
||||
|
B |
40 |
-- |
60 |
||||
|
W |
180 |
-- |
220 |
||||
|
Dominant wavelength |
λd |
IF=700mA |
R |
620 |
-- |
630 |
nm |
|
G |
520 |
-- |
530 |
||||
|
B |
455 |
-- |
470 |
||||
|
Xim kub |
CCT |
IF=700mA |
W |
2800 |
-- |
3200 |
K |
|
CRI |
Ra |
IF=700mA |
W |
80 |
-- |
-- |
|
|
Kub Coefficient ntawm Forward Voltage |
∆VF/∆T |
IF=700mA |
−− |
−− |
-2 |
−− |
mV / degree |
|
Rov qab tam sim no |
IR |
VR=5V |
−− |
−− |
−− |
10 |
μ A |
|
Saib lub kaum sab xis |
2Θ1/2 |
IF=700mA |
−− |
−− |
120 |
−− |
Deg |
|
Thermal Resistance Junction To Board |
RΘJ-B |
IF=700mA |
−− |
-- |
5 |
-- |
degree / W |
Daim ntawv thov
12W 5050 RGBW RGBWW SMD LED Diode 700mAdaim ntawv thov
12W 5050 RGBW RGBWW SMD LED Diode 700mA yog tsuas yog siv rau LED Phab ntsa ntxhua khaub ncaws, LED ciav teeb thiab LED RGB underwater teeb thiab lwm yam kev siv.
