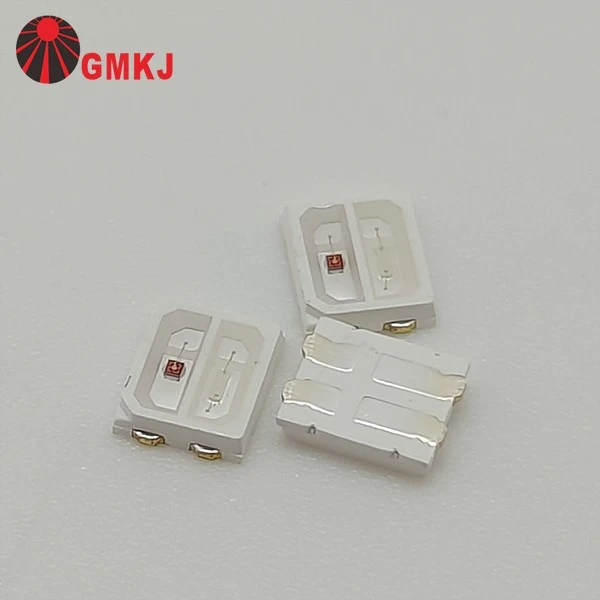

Dual Xim 660NM 850NM 2835 SMD LED Nti Tej Tsiaj
| Khoom npe | Dual Xim 660NM 850NM 2835 SMD LED Nti |
| Tshooj naj npawb | - 2835r66r85-2Bc-Z2A6 |
| CHIPS HOM | Tuam Tshoj Sanan Chips |
| Chaw tsim tshuaj paus hom rau ntawm daim ntawv lo |
GMKJ LEDs Tsim los ntawm GuangMai Technology Co., Ltd Hauv Tuam Tshoj Shenzhen |
| Ntxiv rau |
Txhua Xim Idmax 150Ma |
| Luminous / radiant flux |
Sib sib zog nqus liab 660NM: 200-250mw; Infrared 850nm: 100-150mw |
| Teeb Pom Kev Zoo | IR LED tsis muaj LM / h sau tseg, feem ntau ntawm lub teeb hloov mus rau hauv cov hluav taws xob hluav taws xob infrismed |
| Wavelength / xim |
Sib sib zog nqus liab 660-665nm; Infrared 850-8555nm |
| Hwjchim |
2 x 0.5 watt, tag nrho 1 watt |
| Cov Khoom Siv Ntim |
PCT 2835 SMD LEDs nrog 4 PADS, Loj Pads Anode + |
| Teeb pom kev zoo |
120 Qib Teeb Pom Kev |
| Tus nqi | Thov hu rau GMKJ rau tus nqi thiab ntau cov ntsiab lus |
| MIN txiav txim kom muaj nuj nqis |
Nyob ntawm cov khoom siv tsis txaus ntseeg: Yog tias peb tau npaj xa cov khoom thauj khoom, tom qab ntawd txawm 100 pcs nrog cov qauv kuaj lub hom phiaj yuav siv tau ntawm no. Yog tias tsis muaj Tshuag, ces peb xav tau min kev txiav txim kom muaj nuj nqis nrog tsawg kawg 30,000 pcs. |
| Kev lav | 4 xyoos |
| OEM kev pabcuam |
1. Skd feem muaj; 2. Mekas LED array nrog qhov loj uas koj xav tau yog OK ntawm no. |
GMKJ 2835 SMD LED Puv YimDaim duab
 |
 |
 |
| 2835 white color smd leds, like 2700K-6500K, CRI>80 | 2835 IR SMD LEDS, zoo li 730nm, 850nm, 940nm lossis swir 1000-1650nm | 2835 SMD LEDS xim hom, zoo li UV 365-410nm, xiav 420-480nm, ntsuab 500-530nm ... |
Txhuas LED PCBA sib sau ua ke los ntawm GMKJ (PCB Teeb Duab thiab BOM muab los ntawm peb cov neeg siv khoom)
Dual Xim 660NM 850NM 2835 SMD LED app Qhov Loj
Thov saib xyuas: lub ncoo loj yog rau anode +!
Dual Xim 660NM 850NM 2835 SMD LED NtiCov Hluav Taws Xob
|
Chaw ua uas tsis tau haus |
Lub cim |
Yam xwm txheej |
Xim |
Lub min |
Avg. |
Tus zuag |
Tej nyob |
|
Tom ntej voltage (正向压降) |
VF |
IF=150 ma |
R66 |
1.80 |
-- |
2.40 |
V |
|
Tom ntej voltage (正向压降) |
VF |
IF=150 ma |
R85 |
1.40 |
-- |
2.00 |
|
|
Lub cev muaj pa 光功率 |
Φe |
IF=150 ma |
R66 |
200 |
-- |
250 |
mw |
|
Lub cev muaj pa 光功率 |
Φe |
IF=150 ma |
R85 |
100 |
-- |
150 |
mw |
|
Peak wavelength 峰值波长 |
λp |
IF=150 ma |
R66 |
655 |
-- |
665 |
nm |
|
Peak wavelength 峰值波长 |
λp |
IF=150 ma |
R85 |
845 |
-- |
855 |
|
|
Kub coefficient ntawm cov voltage rau pem hauv ntej (正向压降之温度系数) |
∆VF/∆T |
IF=150 ma |
−− |
-2 |
−− |
MV / degree |
|
|
Rov qab tam sim no (反向漏电流) |
IR |
VR=5V |
−− |
−− |
10 |
μ A |
|
|
Thermal Kuj Dhos Ntaus Ntawv (热阻) |
RΘJ-S |
IF=150 ma |
-- |
8 |
-- |
Degree / w |
|
|
Saib lub kaum ntse ntse ntse [1] (发光角度) |
2Θ1/2 |
IF=150 ma |
−− |
120 |
−− |
DEG |
Vim li cas 660 nm thiab 850 nm yog nyiam wavelengths rau lub teeb liab thiab kev kho mob zoo nkauj teeb?
1️⃣ daim tawv nqaij nkag tob tob
660 nm (lub teeb liab)-} nkag mus2-3 hlirau hauv daim tawv nqaij, ncav cuagEpidermis thiab Dermis Txheej.
👉 Zoo tagnrho rau-} theem kev kho mobXws li:
Daim tawv nqaij rejuvenation
Collagen ntau lawm
Qhov txhab zoo kho
Pob txuv thiab caws pliav
850 nm (ze - Infrared lub teeb){{0- penetrates ntau ntxaum, ncig15-25 hli, ncavCov leeg, pob qij txha, thiab cov ntaub so ntswg tob.
👉 Siv rautob - ntaub so ntswg thiab mob - kev kho kom haum, suav nrog:
Cov leeg rov qab
Sib npaug rau mob o
Txhim kho cov ntshav ncig
Txhim Kho Cellular Zog (Atp Ntau Lawm)
2️⃣ mitochondrial nqus
Ob yam660 nmthiab850 nmwavelengths phim tusnqus peaks ntawm cytochrome c oxidase (cco){{0 {}} Tus tseem ceeb enzyme hauv mitochondria.
Thaum cov wavelengths no nqus tau, lawv pab mitochondria tsimNtau ATP (Lub Zog Cell).
👉 Ntau atp =} nrawm duaKev kho tes ntawm tes, kev tsim dua tshiab, thiab metabolism.
3️⃣ Kev Ruaj Ntseg thiab Kev Ua Haujlwm
Cov wavelengths no yog nyob hauvQhov rai kho qhov rai ntawm biologation nqaij (600-900 nm)-} lub ntsiab lustsawg kawg scattering thiab nqus dej los yog melanin.
Tias yog vim li cas lub teeb nyob rau hauv no ntau tauTxom Nyem tsis muaj kev sib cavdaim tawv nqaij.
4 ️⃣ Cov ntaub ntawv ua pov thawj hauv tsev kho mob
660 nm + 850 nm kev sib xyaw ua ke yogCov tshuaj ntsuam xyuas feem ntauThiab cov wavelengths rau pbm kev kho mob.
Ntau fda -}} -}} Tau muab ntawv pov thawj kev siv lub teeb ci ntsa iab no rauQhov Nyiaj Siab Tshaj Plaws Kho.
✅ Lub ntsiab
| Lub paj | Ntaus | Kev nkag siab | Cov teebmeem tseem ceeb |
|---|---|---|---|
| 660 nm | Xim liab | 2-3 hli | Collagen, kev kho cov tawv nqaij, pob txuv, ua kom zoo |
| 850 nm | Ze - ir | 15-25 hli | Kev rov qab sib thooj, kev ncig ua si, txhawm rau muab txhuam |
Nrhiav cov ntsiab lus ntxiv
Koj tuaj yeem rub tawm cov datasheet ntawm nplooj ntawv no rau SMD RAWS LI.
Yog tias koj xav tau cov ntsiab lus ntxiv zoo li tus nqi, MIN txiav txim kom muaj nuj nqis, Tshuag cov xwm txheej thiab cov thawj lub sijhawm ua, thov hu rau GMKJ coj tus coj ncaj qha!
Peb ib txwm nyob ntawm no rau koj!
