RGB 50W SMD LED Module rau Dej nyab lub teeb Specs
| Khoom npe | RGB 50W SMD LED Module rau Dej nyab lub teeb |
| Tshooj naj npawb | GS -50WRGB-8S6P-J8B8 |
| Chips hom | Suav Sanan chips |
| Chaw tsim tshuaj paus ntawm Label |
GMKJ LEDs Tsim los ntawm Guangmai Technology Co., Ltd nyob rau hauv Shenzhen Tuam Tshoj |
| Tswv yim |
Txhua xim Ifmax 600mA Liab 16-20vdc; Ntsuab: 22-26vdc; Xiav: 24-28vdc; Common anode, nrog txhua xim sib cais tswj |
| Luminous / Radiant Flux |
Liab 480-560lm; Ntsuab 880-960lm; Xiav 240-320lm; |
| Teeb pom kev zoo | Nyob ib ncig ntawm 50 lm / w |
| Wavelength / Xim |
Liab 620-630nm; Ntsuab 520-530nm; Xiav 460-465nm; |
| Hwj chim | 50W |
| Pob khoom |
Thickness 1.6 hli txhuas pcb board substrated; Nrog 48 pcs 3030 smd leds soldered ntawm pcb boards; Txhua xim 16 pcs leds |
| Lub teeb pom kev zoo |
120℃teeb pom kev zoo kaum sab xis |
| Nqe | Thov hu rau GMKJ rau tus nqi thiab cov ntsiab lus ntxiv |
| Min txiav txim kom muaj nuj nqis |
Nyob ntawm cov khoom muaj nyob: Yog tias peb tau npaj cov khoom xa tuaj, ces txawm tias 100 pcs nrog cov qauv kuaj lub hom phiaj yog txais tau ntawm no. Yog tias tsis muaj Tshuag, ces peb xav tau min xaj kom muaj tsawg kawg yog 1500 pcs. |
| Warranty | 4 xyoo |
| Kev pabcuam OEM |
1. SKD qhov chaw muaj; 2. Customized LED array nrog qhov loj me koj xav tau yog OK ntawm no. |
RGB 50W SMD LED Module rau Dej nyab lub teebDuab
|
Liab xim teeb rau (tsis muaj zog loaded) |
 |
|

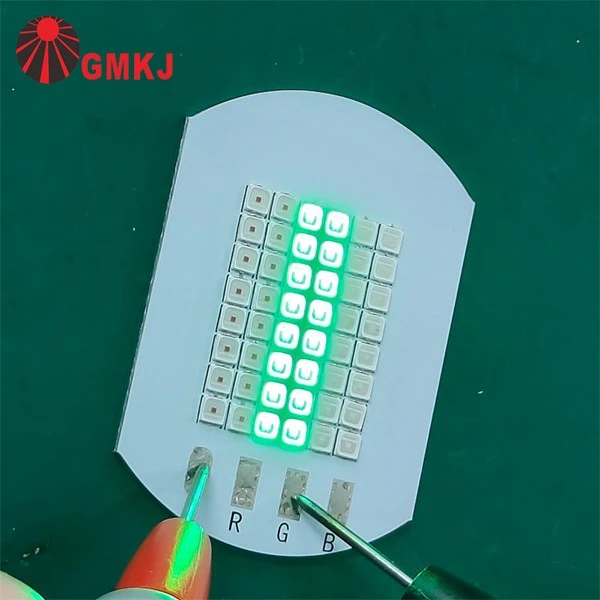

Ntsuab xim teeb rau (tsis muaj zog loaded) |
 |
|
Xiav xim teeb pom kev zoo (tsis muaj zog loaded) |
 |
RGB 50W SMD LED Module rau Dej nyab lub teeb Dimension
RGB 50W SMD LED Module rau Dej nyab lub teebHluav taws xob Spec
|
Parameter |
Cim |
Cov xwm txheej |
Emitting Xim |
Tus nqi |
Chav tsev |
||
|
Min |
Avg. |
Max |
|||||
|
Forward Voltage |
VF |
IF=600mA |
R |
16.0 |
-- |
20.0 |
V |
|
G |
24.0 |
-- |
28.0 |
||||
|
B |
22.0 |
-- |
26.0 |
||||
|
Luminous Flux |
Φv |
IF=600mA |
R |
480 |
-- |
560 |
ib lm |
|
G |
880 |
-- |
960 |
||||
|
B |
240 |
-- |
320 |
||||
|
Dominant wavelength |
λd |
IF=600mA |
R |
620 |
-- |
630 |
nm |
|
G |
520 |
-- |
530 |
||||
|
B |
455 |
-- |
465 |
||||
|
Kub Coefficient ntawm Forward Voltage |
∆VF/∆T |
IF=600mA |
−− |
−− |
-2 |
−− |
mV / degree |
|
Rov qab tam sim no |
IR |
VR=40V |
−− |
−− |
−− |
10 |
μ A |
|
Saib lub kaum sab xis |
2Θ1/2 |
IF=600mA |
−− |
−− |
120 |
−− |
Deg |
|
Thermal Resistance Junction To Soldering Pad |
RΘJ-s |
IF=600mA |
−− |
-- |
8 |
-- |
degree / W |
Nrhiav kom paub ntxiv
Koj tuaj yeem rub tawm cov ntaub ntawv los ntawm nplooj ntawv no rau lwm yam LEDs.
Yog tias koj xav tau cov ntsiab lus ntxiv xws li nqe, min txiav txim kom muaj nuj nqis, Tshuag xwm txheej thiab lub sijhawm ua haujlwm, thov hu rau GMKJ LEDs ncaj qha!
Peb ib txwm nyob ntawm no rau koj!
