Khoom Description
Ceramic 200W 395nm UV LED array module Specs:
| Khoom npe | Ceramic 200W 395nm UV LED array module |
| Tshooj naj npawb | GC-80P395-10C8C-S1D5B |
| Chips hom |
Tuam Tshoj Sanan 45mil chips sab hauv |
| Tswv yim |
32-38vdc max 5600mA |
| Lub zog hluav taws xob |
80000-120000mW ntawm 5600mA |
| Teeb pom kev zoo | Tsis pom UV teeb pom kev zoo, tsis hais txog LPW |
| Xim |
Cov ntaub ntawv nrog 395-400nm. Tab sis peb tuaj yeem kho nrog 365nm, 385nm, 395nm thiab 405nm |
| Hwj chim |
Max 200 Watt ntawm 5600mA |
| Pob khoom | ALN Ceramic loj 21x23mm |
| Lub teeb pom kev zoo |
120 degree |
| Hom thiab manufacturers | GMLEDs, GMKJ |
| Warranty | 4 xyoo |
| Kev pabcuam OEM |
1. SKD qhov chaw muaj; 2. Customized LED array nrog qhov loj me koj xav tau yog OK ntawm no. |
Vim li cas feem ntau ntawm cov neeg siv khoom xaiv 395nm hloov 365nm rau UV curing daim ntawv thov?
Hauv UV curing daim ntaub ntawv, cov neeg siv feem ntau xaiv 395 nm tshaj 365 nm rau ntau qhov laj thawj tseem ceeb:
Zog Efficiency thiab Nqi: LEDs ntawm 395 nm feem ntau siv hluav taws xob ntau dua thiab tsis tshua kim los tsim piv rau cov ntawm 365 nm. Qhov no wavelength yuav tsum tau tsawg zog, ua 395 nm ib tug nqi-zoo xaiv, tshwj xeeb tshaj yog nyob rau hauv loj-scale daim ntaub ntawv.
Cov zis ntau dua: 395 nm LEDs feem ntau muaj kev siv zog ntau dua ntawm lub zog muab ntau dua 365 nm LEDs. Qhov no txhais tau sai dua lub sijhawm kho thiab nce kev ua haujlwm hauv ntau daim ntawv thov UV kho.
Ntev LED Lifespan: LEDs ntawm 395 nm yuav muaj lub neej ua haujlwm ntev dua vim tias lawv tsim kom muaj cua sov tsawg thiab feem ntau siv tau ntev dua. Qhov kev txo qis no yog qhov txaus siab rau hauv kev lag luam thiab kev lag luam chaw uas muaj kev ntseeg siab thiab txo kev saib xyuas yog qhov tseem ceeb.
Kev nyab xeeb thiab kev ua raws cai: 395 nm yog ze dua rau pom lub teeb thiab nyhav me ntsis kev nyab xeeb dua los tuav thiab saib ntau dua 365 nm. Qhov wavelength no tuaj yeem pab txo qis kev pheej hmoo ntawm kev noj qab haus huv los ntawm kev raug ncua ntev, ib qho tseem ceeb uas qee qhov kev lag luam coj mus rau hauv tus account.
Curing Material Compatibility: Ntau cov ntaub ntawv UV-kho tau raug tsim los teb zoo rau 395 nm, tshwj xeeb tshaj yog nyob rau hauv cov nplaum thiab cov coatings. Txawm hais tias 365 nm muab kev kho kom tob dua vim qhov luv wavelengths, kev sib raug zoo thiab kev ua tau zoo ntawm kev kho ntawm 395 nm feem ntau ua tau raws li cov neeg siv khoom tsis tas yuav tsum tau nkag mus tob dua.

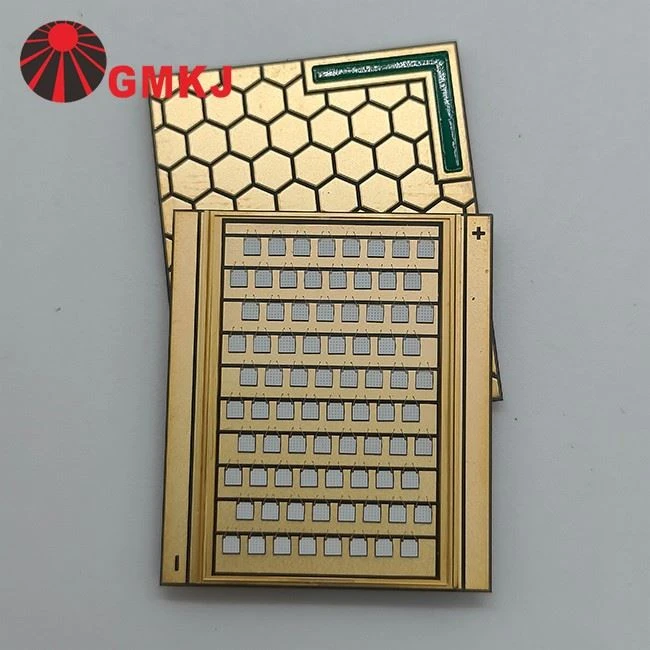

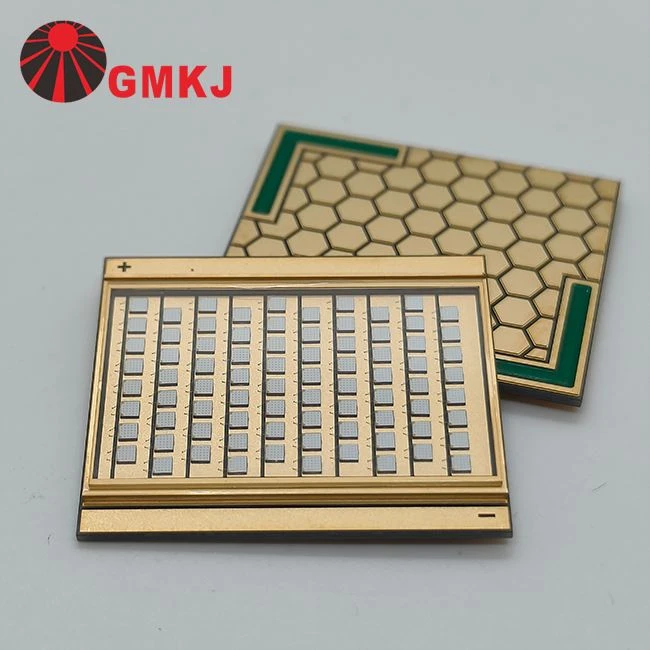

Ceramic 200W 395nm UV LED array module Daim duab:
Ceramic 200W 395nm UV LED array module qhov ntev:
Ceramic 200W 395nm UV LED array module specs:
|
Parameter |
Cim |
Cov xwm txheej |
Min |
Avg. |
Max |
Chav tsev |
|
Forward Voltage |
VF |
IF=5600mA |
32.00 |
-- |
38.00 |
V |
|
Thermal Resistance Junction To Board |
RΘJ-B |
IF=5600mA |
-- |
2 |
-- |
degree / W |
|
Radiant Flux |
Φe |
IF=5600mA |
80000 |
-- |
120000 |
mW |
|
Peak wavelength |
λp |
IF=5600mA |
395 |
-- |
400 |
nm |
|
Rov qab tam sim no |
IR |
VR=50V |
−− |
−− |
10 |
μ A |
|
Saib lub kaum sab xis |
2Θ1/2 |
IF=5600mA |
−− |
120 |
−− |
Deg |
Daim ntawv thov
Ceramic 200W 395nm UV LED array moduledaim ntawv thov
Ib qho 200W 395nm UV LED array module, tshwj xeeb tshaj yog ib qho ua nrog lub hauv paus ceramic rau kev siv hluav taws xob zoo thiab ua haujlwm ntev, feem ntau yog siv rau hauv cov ntawv thov uas siv lub teeb UV siab xav tau rau kev kho kom zoo thiab ua haujlwm. Cov ntawv thov tseem ceeb suav nrog:
UV Curing hauv Industrial Printing:
Siv rau hauv inkjet thiab offset luam ntawv rau curing inks, coatings, thiab varnishes ntawm ntau yam substrates (xws li, ntawv, yas, thiab hlau).
Muab ceev curing speeds, ua kom muaj kev nkag siab zoo hauv kev lag luam luam ntawv.
Adhesive thiab Coating Curing:
Qhov zoo tshaj plaws rau kev kho UV-rhiab nplaum nplaum siv hauv hluav taws xob, tsheb, khoom siv kho mob, thiab lwm yam kev lag luam raug tsim.
Kuj tseem siv rau hauv daim ntawv thov txheej uas yuav tsum tau ua kom tiav sai, ruaj khov, xws li cov ntoo tiav, cov txheej tiv thaiv, thiab cov txheej txheem kho qhov muag.
3D luam ntawv:
Siv nyob rau hauv SLA (Stereolithography) thiab DLP (Digital Light Processing) 3D luam ntawv rau curing photopolymer resins txheej los ntawm txheej.
Tso cai rau kev tsim cov high-precision 3D luam ntawv qhov chaw nrog du nto.
PCB thiab Electronics Manufacturing:
Ua hauj lwm hauv kev kho cov txheej txheem txheej txheem thiab UV nplaum ntawm cov ntawv luam tawm Circuit Board (PCBs) thiab cov khoom siv hluav taws xob ntxiv rau kev tiv thaiv ntxiv thiab ua haujlwm ntev.
Xyuas kom ceev curing nrog tsawg kub puas tsuaj rau rhiab hluav taws xob Cheebtsam.
Automotive thiab Aerospace Component Manufacturing:
Siv los kho UV-sensitive xim, coatings, thiab adhesives hauv kev tsim khoom, muab kev ruaj khov, ruaj khov thiab tiv thaiv nto.
Pab tau nyob rau hauv high-volume automotive ntau lawm kab vim nws ceev-kho zog.
Optical thiab Lens Bonding:
Haum rau kev sib txuas lo ntsiab muag thiab lwm yam khoom siv kho qhov muag hauv cov ntawv thov uas qhov tseeb thiab qhov tseeb yog qhov tseem ceeb, xws li hauv cov tsom iav, koob yees duab, thiab cov khoom siv kho mob.
Lub hauv paus ceramic ntawm 200W UV LED module pab ua kom muaj cua sov kom zoo, ua kom lub neej ua haujlwm ntev thiab ua haujlwm zoo ib yam nyob rau hauv lub zog siab, ua rau nws zoo tagnrho rau kev xav tau, kev siv ib puag ncig txuas ntxiv.
