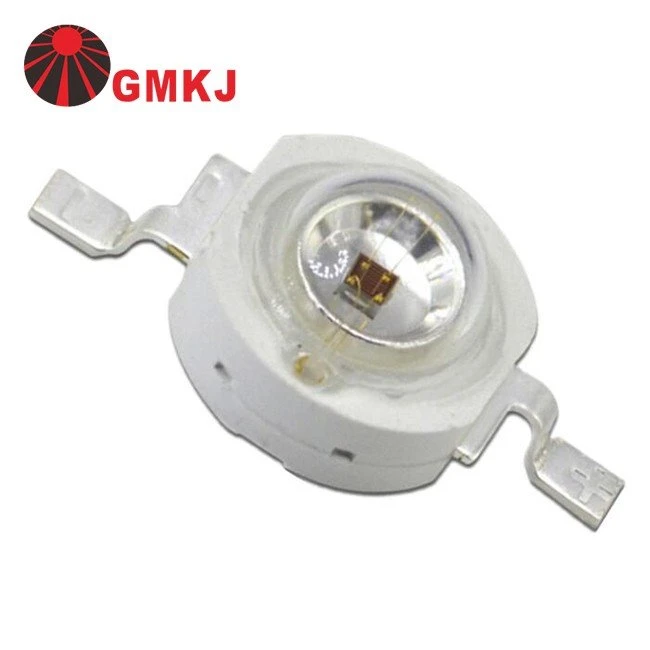

Epistar 660nm LED nti rau Kev Loj Hlob Cog

KhoomCov lus hais

660nm LEDs ntawm no siv Epileds, Osram chips thiab kuj yog Epistar chips chips.

Peb tuaj yeem ncav cuag max ncig 4 umol / s / W PPE nrog kev ua haujlwm siab.

Ntau ntawm cov neeg siv khoom tau yuav los ntawm peb hauv kev ua cov coj cog kev lag luam teeb txawb thiab kuj tau txais kev pabcuam LED teeb.

Yog tias koj xav tau 670nm hom yoj qhov ntau dua, peb kuj muaj qhov ntawd thiab. Tab sis nws los nrog ntau nqi ntau dua.

Kom paub meej ntxiv, thov hu rau peb ncaj qha.

Khoom Npe	Epistar 660nm LED nti rau Kev Loj Hlob Cog	Cov Qauv Khoom	GP-3WDR-G42-660
Faiv Ntaj	3W	Lub Teeb Xim	Sib Sib Zog Liab
Kev Hloov Mus Tom Hluav Taws Xob	2.0-2.8V	Saib Lub Kaum	120°
Nraim Siab Tam Sim No	700mA	Kev khiav hauj lwm kub	-40~+60 ℃
Luminous Flux	30-40LM	Cia Khoom Kub	-40~+85 ℃
Wavelength	660-665nm	Soldering Kub	180℃

Peb muaj ntau qhov loj ntawm 1W thiab 3W siab zog hluav taws xob LED muaj.

Yog tias koj xav tau ib qho ntawm cov npe hauv qab no, thov hu rau peb!

Khoom Npe	Lub Teeb Xim	CCT / Wavelength	Kev tsuj roj	Tam Sim No	Lumen	Cov lus ceeb toom
1-3W Lub Hwjchim Loj LED	Kub Daj	2000-2200K	2.8-3.6V	350-700mA	120-260LM	CRI70,80,90
1-3W Lub Hwjchim Loj LED	Dawb	3000-15000K	2.8-3.6V	350-700mA	120-320LM	CRI70,80,90,95+
Muaj Zog UV LED	UV	365-370nm	3.0-3.6V	350-700mA	/	Epileds Nti
Muaj Zog UV LED	UV	370-420nm	3.0-3.6V	350-700mA	/	370-380-390-400-410-420nm
Lub zog loj xiav LED	Xiav	440-470nm	3.0-3.6V	350-700mA	10-30LM	440-450-460-470nm
Muaj Zog LED Ntsuab	Ntsuab	500-530nm	3.0-3.6V	350-700mA	80-200LM	Epileds Nti
Lub Zog Siab Daj LED	Lub daj	590-595nm	2.0-2.6V	350-700mA	40-90LM	Epileds Nti
Lub Zog Loj Amber LED	Amber	600-610nm	2.0-2.6V	350-700mA	50-90LM	Epileds Nti
Muaj Zog Liab Liab LED	Liab	620-630nm	2.0-2.6V	350-700mA	40-100LM	Epileds Nti
Lub Zog Loj Liab	Deb Liab	660-665nm	2.0-2.6V	350-700mA	30-60LM	Epileds Nti
Lub Zog Loj IR LED	IR	730-750nm	2.0-2.6V	350-700mA	/	Epileds Nti
Lub Zog Loj IR LED	IR	850nm	1.6-2.0V	350-700mA	/	Epileds Nti
Lub Zog Loj IR LED	IR	930-940nm	1.6-1.8V	350-700mA	/	Epileds Nti

Cov duab thiab qhov ntev

Yuav ua li cas peb ntim cov LEDs?

Thov-Txhais kev loj hlob thiab kev kho

Vim li cas GMKJ tuaj yeem muab kev tiv thaiv 4 xyoos

A. Cov khoom lag luam zoo raw khoom saw, 99.99% purity kub, tooj liab thav duab, txheem cystal.

B. Cov cuab yeej tshaj lij, muaj 10years kev ua haujlwm pab pawg.

C. Ib Pob Khoom Siv Hluav Taws Xob tag nrho.

D. Kev tswj hwm cov khoom lag luam nruj me ntsis.

E. LED encapsulation standarization kev tsim kho.

Cov lus qhia ntxiv kom pom ntawm qhov muag, txais tos koj tuaj xyuas GMKJ Hoobkas.

Cim npe nrov: epistar 660nm LED nti rau kev cog kev loj hlob, Tuam Tshoj, tuam ntxhab, cov chaw muag khoom, lub Hoobkas, nqe, pheej yig, quotation, datasheet, specs, specification
