Specification

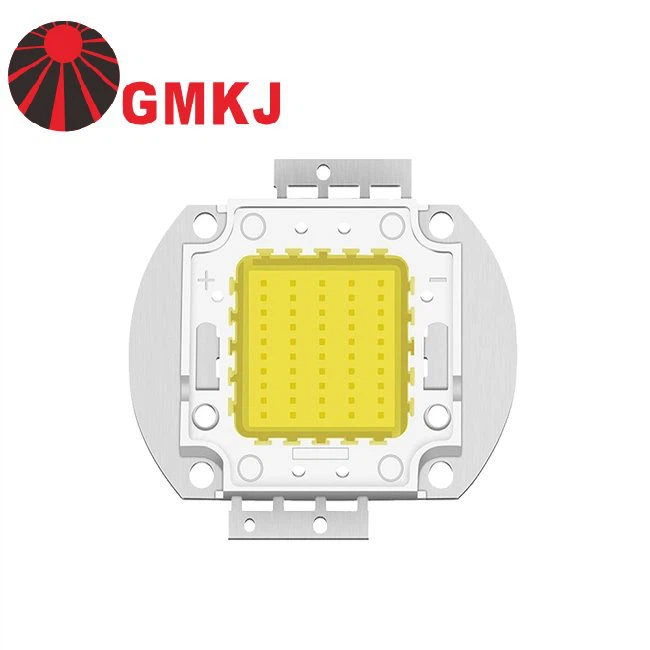

20W COB LED nrog liab tooj liab puag, peb 20w-300w High Fais COB LED tau siv dav hauv LED Txoj Kev Teeb, Cov Ntaus Hluav Taws Xob, Qhov Teeb Lub Teeb, Patio Teeb, Qhov Chaw Teeb, Kev Tshawb Nrhiav Teeb thiab lwm yam.
Ua kom muaj lub teeb ci zoo dua mus txog 140LM / Watt;
Chip Cov cim nto moo nti: Bridgelux, Epistar thiab lwm yam rau koj xaiv
Base Liab tooj liab puag + 99.99% purity kub hlau
Cir Sib puag ncig nrog dav pom lub kaum ntse ntse
Qhov ze ntawm kev xa tawm ntawm phosphor zoo heev txo cov thermal tiv thaiv ntawm lub teeb ci;
● Kev tswj qhov ntsuas kom tau qhov tseeb teeb pom kev tswj;
● Dhau LM-80 thiab EN62471 Cov Ntawv Pov Thawj.
Xav paub ntau ntxiv, thov hu rau GMKJ muag!
|
Khoom Npe |
Lub Zog Loj Dawb 20W COB LED |
Cov Qauv Khoom |
GP-20WW6-P2345T-Z1GL |
|
Faiv Ntaj |
20W |
Lub Teeb Xim |
Xim Dawb |
|
Kev Hloov Mus Tom Hluav Taws Xob |
30-34V |
Saib Lub Kaum |
120° |
|
Nraim Siab Tam Sim No |
700mA |
Kev khiav hauj lwm kub |
-40~+60 ℃ |
|
Luminous Flux |
2600-3000LM |
Cia Khoom Kub |
-40~+85 ℃ |
|
Xim Xim Kub |
6000-6500K/3000-3200K |
Soldering Kub |
260℃ |
Peb Sab Nraum Kev Teeb Sab 20w cob coj yog kev kub siab dissipation, siab zog thiab cov tshuab tawm sab nraud.
Lub zog muaj: 10w-300w.
Yog tias koj xav tau ib qho ntawm cov npe hauv qab no, thov hu rau peb!
|
Lub Zog Loj 20W COB LED SERIES SPECIFICATION |
||||||
|
Khoom Npe |
Lub Teeb Xim |
CCT / Wavelength |
Kev tsuj roj |
Tam Sim No |
Qhov Loj Me |
Lub teeb nrawm |
|
20W Dawb COB LED |
Kub Daj Sov Dawb Dawb Khaub Thuas Dawb |
2000-2200K 2900-3100K 4000-7000K 9000-15000K |
28-34V |
700mA |
33mil / 35mil 38mil 45mil |
90-100-110LM / W 100-120LM / W 120-140LM / W |
|
20W Liab COB LED |
Liab |
620-630nm |
20-24V |
700mA |
30mil / 33mil 42mil |
40-60LM / W 60-80LM / W |
|
20W Ntsuab LED |
Ntsuab |
520-530nm |
30-34V |
700mA |
30mil / 35mil 38mil / 45mil |
70-90LM / W 90-100LM / W 100-110LM / W |
|
20W Xiav LED |
Xiav |
450-470nm |
30-34V |
700mA |
30mil / 35mil 38mil / 45mil |
10-15LM / W 15-20LM / W 20-30LM / W |
|
20W daj LED |
Lub daj |
590-595nm |
30-34V |
700mA |
30mil / 42mil |
40-50LM / W 50-60LM / W |
|
20W Amber LED |
Amber |
600-610nm |
30-34V |
700mA |
30mil / 42mil |
40-50LM / W 50-60LM / W |
|
20W Deb Liab LED |
Deb Liab |
660-665nm |
20-24V |
700mA |
30mil / 42mil |
20-30LM / W 30-50LM / W |
|
30W RGB LED |
RGB |
R: 620-630nm, 20-24V, 350mA, 30-40LM / W @ 30mil, 40-60LM / W @ 35mil, 60-80LM / W @ 42mil G: 520-530nm, 28-34V, 350mA, 60-70LM / W @ 30mil Nti, 70-80LM / W @ 38mil, 80-100LM / W @ 45mil B: 460-470nm, 28-34V, 350mA, 10-15LM / W @ 30mil, 15-20LM / W @ 38mil Nti, 20-30LM / W @ 45mil |
||||
|
60W RGB LED |
RGB |
R: 620-630nm, 20-24V, 700mA, 30-40LM / W @ 30mil, 40-60LM / W @ 35mil, 60-80LM / W @ 42mil G: 520-530nm, 28-34V, 700mA, 60-70LM / W @ 30mil Nti, 70-80LM / W @ 38mil, 80-100LM / W @ 45mil B: 460-470nm, 28-34V, 700mA, 10-15LM / W @ 30mil, 15-20LM / W @ 38mil Nti, 20-30LM / W @ 45mil |
||||
|
90W RGB LED |
RGB |
R: 620-630nm, 20-24V, 1050mA, 30-40LM / W @ 30mil, 40-60LM / W @ 35mil, 60-80LM / W @ 42mil G: 520-530nm, 28-34V, 1050mA, 60-70LM / W @ 30mil Nti, 70-80LM / W @ 38mil, 80-100LM / W @ 45mil B: 460-470nm, 28-34V, 1050mA, 10-15LM / W @ 30mil, 15-20LM / W @ 38mil Nti, 20-30LM / W @ 45mil |
||||
20W COB LED pob lus txhawb

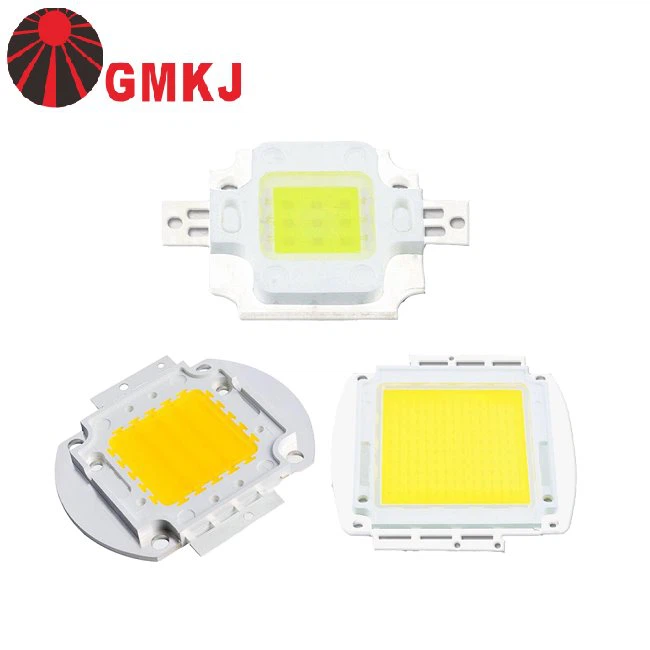

20W COB LED ntshiab cov duab
20W COB LED thov
Daim Ntawv Thov: 20W-100W COB LED tuaj yeem siv dav hauv LED Dej nyab Lub teeb, LED Txoj Kev Teeb, LED Teeb Lub Teeb, LED High Bay Teeb thiab lwm yam ...
Hais txog GMKJ
Shenzhen Guangmai Electronics Co., Ltd. tsim nyob rau hauv Shenzhen ntawm Tuam Tshoj xyoo 2009, yog National High-Tech Enterprise tsom rau high-end LED pob kev pabcuam. Peb cov LED (SMD LED, Lub Zog Hluav Taws Xob LED, COB LED) siv rau kev cog ntoo cog pom kev zoo, ua yeeb yaj kiab teeb pom kev zoo nkauj, Lub tshuab ua haujlwm zoo nkauj, UV tua, tso tawm, theem teeb pom kev zoo, Infrared Sensor thiab Toj roob hauv pes teeb thiab lwm yam.
Peb tau txais qhov tsis muaj kev ntseeg siab rau cov neeg siv khoom thoob ib puag ncig kev lag luam hauv domestic thiab sab nrauv rau ntau lub xyoo. Ntau tshaj 10 Xyoo kev, ua tsaug ntau rau kev mloog thiab txhawb nqa.
Kev saib xyuas OEM: OEM / ODM cov kev pabcuam muaj, peb tuaj yeem ua koj tus kheej Brand thiab
Peb cov kev pabcuam
Cov FAQ
Q: Koj cov khoom lag luam ntau npaum li cas?
A: Peb cov khoom tseem ceeb suav nrog:
· COB LED 2-400W
Kev cog lus SMD LED 0.06W-5W
· Kev sib xyaw ua ke Flip Chip LED Module 3-500W
Lub Zog LED 1-5W
· RGB LED lossis RGB / RGBW LED 1-100W
Q: Koj puas muab cov qauv dawb?
A: Yog, Peb yuav muab cov qauv dawb rau P02 LED (1W siab zog LED, 6 koob 3W RGB LED), 3030 SMD LED, 5050 SMD LED, 3535 RGB LED,
3535 RGBW LED, thiab lwm yam.
Q: Koj puas yog cov chaw tsim khoom lossis chaw lag luam?
A: Peb yog cov chaw tsim khoom thiab cov kws tshaj lij LED txij thaum 2005.
Q: Koj txoj kev them nyiaj dab tsi koj txais?
A: Peb lees txais T / T, Paypal, Western Union thiab lwm yam ntxiv raws li cov neeg yuav tsum tau muaj.
Q: Ua li cas txog lub sijhawm ua hmoov txhuas?
A: Nws nyob ntawm kev txiav txim qhov ntau. Feem ntau, lub sijhawm ua hmoov txhuas yog li 5-7 hnub ua haujlwm. Rau cov qauv, cov khoom xa tuaj yeem tuaj yeem nrawm
tib hnub.
