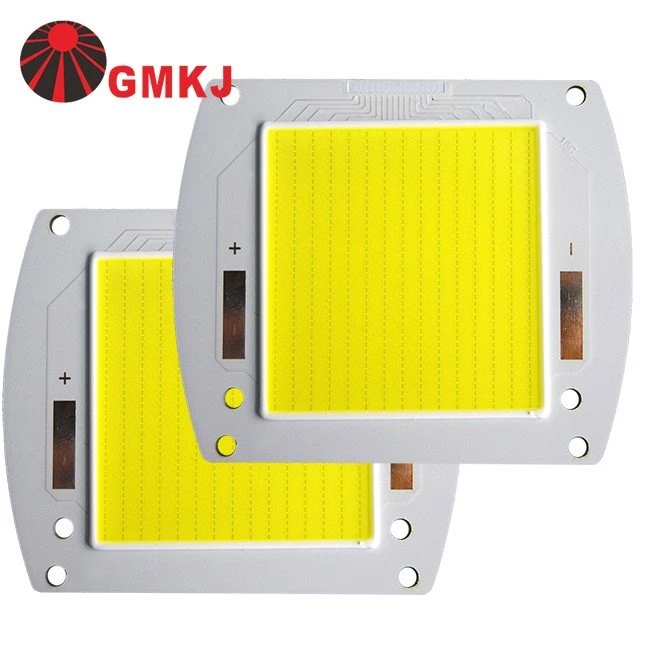

300W LED COB Diode rau Lub Teeb Dej nyab

KhoomCov lus hais

Yam Lub Npe: 300W LED COB Diode rau Lub Teeb Dej nyab

Tus Qauv Zauv: GF-300W6

Cov tswv yim tam sim no: 9000MA

Lub Zog: 300W

Cov tswv yim Voltage: 30-34VDC

LED pob hom: Tig pob pob

Tej Daim Hom: Sanan lossis Bridgelux

Qhov pom kev ci: 120-130LM / W

Xim: 6000K lossis 3000K

Peb muaj ntau lub zog sib txawv muaj rau ntawm no rau CHIP nti COB LEDs.

Lub zog ntau yog los ntawm 10-300W.

Xim kub ntau yog los ntawm sov dawb 2600k rau txias dawb 7000K.

Warranty ntawm no rau tag nrho cov leds cob 4 xyoo.

Flip chip cob leds tau ruaj khov dua li cov ib txwm cob kab nrog lub xov tooj liab.

Txawm hais tias koj siv koj cov ntiv tes kom nias nyuaj ntawm thaj chaw silicone mos.

Tus coj yuav tsis tawg kiag li.

GMKJ mob siab rau kev muab cov khoom lag luam zoo muaj txiaj ntsig zoo LED teeb pom kev zoo rau cov neeg siv thoob plaws ntiaj teb.

10W-300W FLIP CHIP COB LEDCov lus hais
Lub Zog	Tamsis no (mA)	Voltage (VDC)	Tej daim hom	Qhov Loj Me	Xim Xim (K)	Lumen (lm)
10W	300	28-34	Sanan	15 * 30mil * 2	2600-7000	110-130lm / w
20W	600	28-34	Sanan	15 * 30mil * 2	2600-7000	110-130lm / w
30W	900	28-34	Sanan	15 * 30mil * 2	2600-7000	110-130lm / w
40W	1200	28-34	Sanan	15 * 30mil * 2	2600-7000	110-130lm / w
50W	1500	28-34	Sanan	15 * 30mil * 2	2600-7000	110-130lm / w
60W	1800	28-34	Sanan	15 * 30mil * 2	2600-7000	110-130lm / w
70W	2100	28-34	Sanan	15 * 30mil * 2	2600-7000	110-130lm / w
80W	2400	28-34	Sanan	15 * 30mil * 2	2600-7000	110-130lm / w
90W	2700	28-34	Sanan	15 * 30mil * 2	2600-7000	110-130lm / w
100W	3000	28-34	Sanan	15 * 30mil * 2	2600-7000	110-130lm / w
150W	4500	28-34	Sanan	15 * 30mil * 2	2600-7000	110-130lm / w
200W	6000	28-34	Sanan	15 * 30mil * 2	2600-7000	110-130lm / w
300W	9000	28-34	Sanan	15 * 30mil * 2	2600-7000	110-130lm / w

Qhov kom zoo dua ntawm cov nplaws chips COB LED:

Wireless bonded LED thev naus laus zis, feem ntau hu ua flip chip, muaj ob peb qhov txiaj ntsig kev ua tau zoo tshaj li tsoos SMT (Nto Mount Tshuab) LEDs suav nrog kev ua kom zoo dua qub, txhim kho lub tshav kub kom sov thiab zoo dua lub teeb ua haujlwm Flip chip LEDs muab lub teeb zoo dua piv nrog cov thev naus laus zis technology.

Lub teeb oulput siab dua tau ua tiav hauv qhov chaw ntau dua thiab qhov kev ua kom pom lub teeb tsis muaj kev cuam tshuam los ntawm kev ntxoov ntxoo lossis lwm yam kev cuam tshuam rau kev ua tau zoo ib yam.

Nrog wireless bonded thev naus laus zis nti tuaj yeem ncaj qha teeb pom kev los ntawm sab saum toj thiab sab uas tsis muaj xaim xaim tsim kev ua lub teeb duab lossis tsim lub teeb tsis ncaj, muab 15% ntxiv rau lub teeb ci tawm.

LED Qhov Loj

Thov

GMKJ advanced ntim tshuab thiab spectrum tuning tsim tsim kev sib haum xeeb rau qhov pom ntawm lub teeb pom kev zoo. Nws tsim nyog rau kev lag luam teeb pom kev zoo tshwj xeeb tshaj yog teeb pom kev zoo nrog lub nqaim nqaj kaum sab xis xws li LED chaw teeb, LED downlight, LED khiav teeb, thiab lwm yam.

Hais txog GMKJ

GMKJ LED yog nyob rau hauv Shenzhen, tus tswv ntawm lub Hoobkas 10000m2 nrog cov neeg ua haujlwm siab kom paub meej cov haujlwm thiab ntau tshaj 300 tus neeg ua haujlwm.

Ua ke nrog zoo& kho qhov muag; cov neeg ua haujlwm tshaj lij thiab cov kws ua haujlwm zoo; nruab nrog ua ntej rho tawm haujlwm tuag Chaw Sib& nti sib txuas cov khoom siv thiab cov tshuab moulding; zoo meej-kuaj thiab ntsuas kev tiv thaiv.

Nrog lub tswvyim ntawm "Zoo Zoo, Tsis Muaj Txhaum", GMKJ tswj kev tswjhwm nruj raws li ISO / TS16949 daim ntawv pov thawj ua haujlwm hauv txhua kauj ruam los ntawm cov ntaub ntawv raw mus rau cov qauv siv thev naus laus zis thiab ntau lawm. Cov ntawv qhia tag nrho ntawm cov khoom tau lees paub los ntawm LM-80, CE, ROHS, EN62471, IS9001: 2008.

Qhov kev pabcuam thiab cov FAQ

Kev tswj nruj nruj rau kev xaiv cov khoom siv raw.

3 Xyoo Warranty tsawg kawg.

Txhim khu kev qha ntev lub neej; Cov Khoom Siv Zoo Zoo Raw.

Ntau tshaj 13 xyoos' kev paub hauv LED Field.

Txhawb ntau txoj haujlwm tseem ceeb hauv tsoomfwv.

Cov Kev Pab Zoo Tshaj

Kev Pab Neeg Muag Khoom thim rov qab nrog cov kws txawj ua thawj zoo hauv LED teb.

Tshaj Tawm Zoo& Nqe Zoo& Qhov Kev Pab Zoo Tshaj.

Nqe Lus Nug 1. Kuv puas tuaj yeem tau txais ib qho qauv? Puas yog tus qauv coj mus kuaj lossis pub dawb?

A: Yog, kev txiav txim coj mus kuaj muaj thiab txhua tus qauv yuav them.

Q2. Dab tsi yog MOQ rau cov qauv kev txiav txim?

A: Peb cov MOQ yog 200 daim. Cov Qauv Txiav Txim Plaub Ntug MOQ yog 100 daim.

Q3. Kuv puas tuaj yeem muaj cov khoom nrog kuv tus kheej lub logo?

A: Yog lawm, peb muab kev pabcuam OEM nrog MOQ.

Q4. Lub sijhawm txhuas yog dab tsi?

A: Nws nyob ntawm kev txiav txim qhov ntau. Feem ntau cov qauv yuav xa hauv 7 hnub. Sij hawm taug txhuas ntawm kev raug cai yuav tau sib tham kom haum.

Q5. Koj yuav xa cov khoom li cas?

A: Hiav Txwv Nkoj, Cua, nthuav qhia Tshaj Tawm: DHL, TNT, UPS, EMS, thiab lwm yam.
