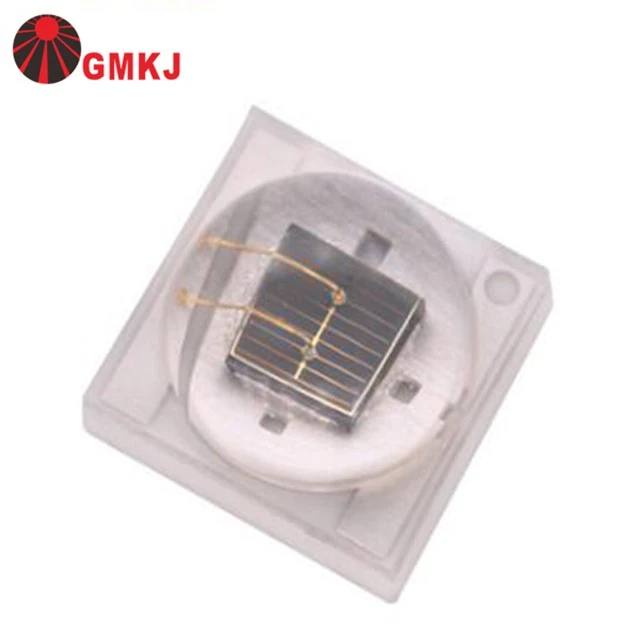

3535 IR SMD LED Specification
|
Deb Liab LED 730nm 740nm 3535 |
Cov Qauv Khoom |
GS-3535FR-730NM |
|
1W 3W |
Lub Teeb Xim |
Deb Infrared Liab |
|
1.6-1.8V |
Saib Lub Kaum |
60° /120° |
|
1000mA |
Kev khiav hauj lwm kub |
-40~+60 ℃ |
|
400-800mW |
Cia Khoom Kub |
-40~+85 ℃ |
|
810nm 850nm 940nm |
Soldering Kub |
260℃ |
Peb muaj ntau qhov loj ntawm 1W thiab 3W 3535 SMD LEDS muaj.
Yog tias koj xav tau ib qho ntawm cov npe hauv qab no, thov hu rau peb!
|
3535IR SMD LED SERIES SPECIFICATION |
|||||
|
Khoom Npe |
Wavelength |
Kev tsuj roj |
Tam Sim No |
Radiant Flux |
Saib Lub Kaum |
|
3535 IR LED |
730nm |
1.6-2.4V |
350-700mA |
350-450mW |
120° |
|
3535 IR LED |
760nm |
1.6-2.4V |
350-700mA |
400-500mW |
60°/120° |
|
3535 IR LED |
810nm |
1.6-2.4V |
350-700mA |
400-500mW |
60°/120° |
|
3535 IR LED |
850nm |
1.6-2.4V |
350-1000mA |
250-800mW |
60°/120° |
|
3535 IR LED |
880nm |
1.6-2.4V |
350-700mA |
350-450mW |
60°/120° |
|
3535 IR LED |
940nm |
1.4-1.6V |
350-1000mA |
130-600mW |
60°/120° |
|
3535 IR LED |
980nm |
1.2-1.8V |
350-700mA |
250-350mW |
60°/120° |
|
3535 IR LED |
1020nm |
1.2-1.8V |
350-700mA |
150-350mW |
60°/120° |
|
5050 IR LED |
760nm |
3.0-3.2V |
1500mA |
2000-2500mW |
60° |
|
5050 IR LED |
800nm |
3.0-3.2V |
1500mA |
2000-2500mW |
60° |
|
5050 IR LED |
830nm |
2.8-3.2V |
1000mA |
1500-2000mW |
60° |
|
5050 IR LED |
850nm |
1.4-3.2V |
1000-2000mA |
1500-4000mW |
60° |
|
5050 IR LED |
880nm |
2.8-3.2V |
1500mA |
2000-2500mW |
60° |
|
5050 IR LED |
940nm |
2.8-3.2V |
1000mA |
1500-2000mW |
60° |
|
5050 IR LED |
980nm |
2.8-3.2V |
1500mA |
1500-2000mW |
60° |
Package qhov loj me
LED Ntsig Duab
Thov
Hais txog GMKJ
GMKJ tau tsim nyob rau xyoo 2010 nrog kev tso npe peev ntawm 67.23 lab yuan. Nws yog ib qho ntawm cov thawj coj semiconductor teeb ci ntsa iab tuam txhab hluav taws xob nyob hauv Suav teb. Peb lub tuam txhab tau cog lus rau R& D thiab kev tsim kho tshiab, thiab tam sim no muaj ntau dua 70 lub tswv yim tsim hluav taws xob thiab cov qauv siv hluav taws xob ua qauv tshiab.
GMKJ cov khoom tseem ceeb suav nrog COB LED, ntxeev chip COB LED, 3030 SMD LED, EMC 5050 SMD LED, ceramic 3535 SMD LED, 1-5W K2 High Power Emitter, Horticultural puv spectrum LEDs, LED PCBA thiab LED modules nrog lens. GMKJ muab tag nrho cov txiaj ntsig kev ua haujlwm thiab cov kws tshaj lij txhawb nqa rau LED teeb ci tsim qauv, daws teeb meem thiab daim ntawv thov teeb pom kev zoo.
Muaj Peev Xwm Ntau Lawm
A. Peb lub rhiav npog thaj tsam ntawm 50000 square meters
B. 180 qib siab kawg nkaus tsis siv neeg ntim kab ntim tawm
nws tau tshaj tawm ntiaj teb' s feem ntau ua tiav tsis siv neeg ntau lawm cov khoom siv (ASM, KAIJO, thiab lwm yam).
C. Muaj peev xwm ntau lawm:
SMD 12000KK Ib xyoos twg
Lub zog LED150KK ib xyoos twg
COB LED nti 6KK ib xyoos twg
D. Txhua xyoo cov txiaj ntsig tus nqi 4.0 ~ 4.5Billion Yuan.
Peb cov LEDs tau kuaj thiab tau ntim zoo ua ntej khoom xa tuaj. (Ntim Ntim: Yas yeeb lossis Yas Tais nrog ntim ntim; Reels, thiab lwm yam)
Peb tab tom nrhiav rau tom ntej los tsim kev sib raug zoo ntev kev lag luam nrog koj.
Peb yuav ua peb qhov zoo tshaj plaws los ua koj tus phooj ywg thiab ntseeg tus khub hauv Suav.
Cov FAQ
Q: Koj puas muab cov qauv dawb?
A: Yog, Peb yuav muab cov qauv dawb rau P02 LED (1W siab zog LED, 6 koob 3W RGB LED), 3030 SMD LED, 5050 SMD LED, 3535 RGB LED, 3535 RGBW LED, thiab ntau ntxiv rau lwm cov qauv.
Q: Koj puas yog cov chaw tsim khoom lossis chaw lag luam?
A: Hauv khw thoob ntiaj teb, GMKJ yog tus paub zoo li tus kws tshaj lij thiab kev paub txog cov khoom lag luam LED.
Q: Ua li cas txog lub sijhawm ua hmoov txhuas?
A: Nws nyob ntawm kev txiav txim qhov ntau. Feem ntau lub sijhawm ua hmoov txhuas yuav tsum yog 5-7 hnub ua haujlwm. Rau cov qauv, cov khoom xa tuaj yeem ua ceev ceev ib hnub.
Q: Koj txoj kev them nyiaj dab tsi koj txais?
A: Peb lees txais T / T, Paypal, Western Union thiab lwm yam ntxiv raws li cov neeg yuav tsum tau muaj.
Q. Koj puas muaj MOQ txwv rau qhov kev txiav txim coj teeb? Cas' s cov qauv them nyiaj?
A: MOQ yog 10pcs rau txhua tus qauv. Peb lees txais Alibaba Kev Lag Luam Kev Lag Luam (Credit card lossis T / T), Paypal, thiab Western Union them nyiaj.
Cim npe nrov: deb deb liab LED 730nm 740nm 3535, Tuam Tshoj, tuam ntxhab, cov chaw muag khoom, lub Hoobkas, nqe, pheej yig, quotation, datasheet, specs, specification
