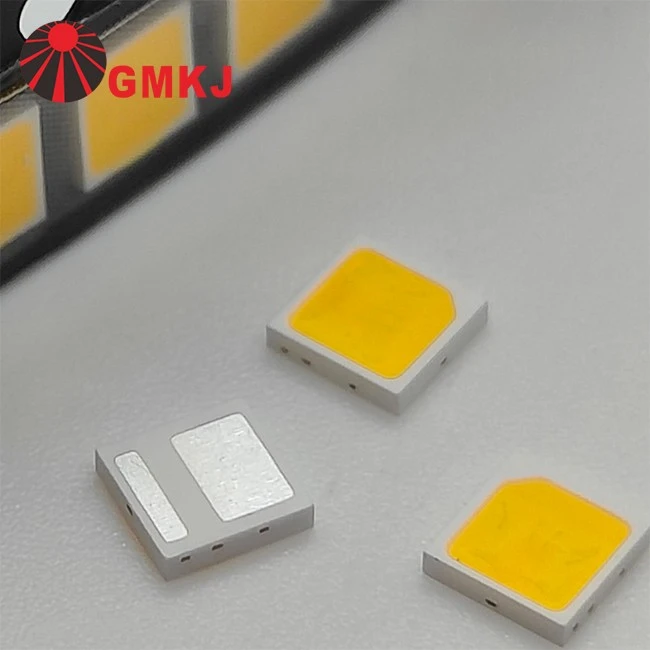

Dawb EMC 1W 6V 3030 SMD LED Diode

6VDC 150mA cov tswv yim;

Los yog 3vdc 300mA input

140-160lm ntawm 1 Watt

2 chips with around 180lm/w at Ra>70 nrog 1 watt zog ntsuas;

2 chips with around 170lm/w at Ra>80 nrog 1 watt zog ntsuas;

4 chips with around 210lm/w at Ra>70 nrog 1 watt zog ntsuas;

4 chips with around 200lm/w at Ra>80 nrog 1 watt zog ntsuas;

2700K, 3000K, 4000K 5000K, 5700K thiab 6500K yeem

CRI: Ra>80

1 watt

EMC pob;

Pheej yig PCT 3030 pob kuj muaj nyob ntawm no

120 degree tiaj pob tsis muaj dome lens

1. SKD qhov chaw muaj;

2. Aluminium pcb boards LED sib dhos kev pabcuam kuj muaj nyob ntawm no.

Parameter

Cim

Cov xwm txheej

Min

Avg.

Max

Chav tsev

Forward Voltage

V_F

I_F=150mA

5.80

--

6.20

V

Luminous Flux

Φv

I_F=150mA

150

170

ib lm

Xim kub

CCT

I_F=150mA

6000

6500

K

CRI

Ra

I_F=150mA

80

--

--

--

Kub Coefficient ntawm Forward Voltage

∆V_F/∆T

I_F=150mA

−−

-2

−−

mV / degree

Rov qab tam sim no

I_R

V_R=10V

−−

−−

10

μ A

Saib lub kaum sab xis

2Θ_1/2

I_F=150mA

−−

120

−−

Deg
