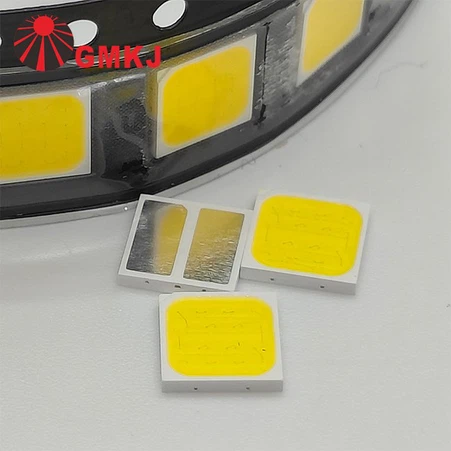

Dawb Xim IIVDC 5W 5050 SMD LED Diode specs
| Khoom npe | Dawb Xim IIVDC 5W 5050 SMD LED DIODE |
| Tshooj naj npawb | Ge - 5050UXXX-3C3Z-J2B2D0-R70 |
| CHIPS HOM | Tuam Tshoj Sanan Chips |
| Chaw tsim tshuaj paus hom rau ntawm daim ntawv lo |
GMKJ LEDs, sab saum toj 100 LED Diode Chaw Tsim Tshuaj nyob hauv Tuam Tshoj txij li 2013 Tsim los ntawm GuangMai Technology Co., Ltd Hauv Tuam Tshoj Shenzhen |
| Ntxiv rau |
9VDC 450MA cov lus qhia |
| Luminous / radiant flux |
650-700LM ntawm 450MA |
| Teeb Pom Kev Zoo | 200-220lm / w ntawm 1W fais fab tuag, 120 ma tswv yim |
| Wavelength / xim |
Cov Xim Dawb: 2700K, 3000K, 3500K, 4000K, 5000K, 5700K, 6500k CRI>70, sdcm<5 |
| Hwjchim |
5 Watt |
| Cov Khoom Siv Ntim |
EMC 5050 SMD LEDs nrog ob qho tib si sib npaug pads pcb teeb |
| Teeb pom kev zoo |
120 Qib Teeb Pom Kev |
| Tus nqi | Thov hu rau GMKJ rau tus nqi thiab ntau cov ntsiab lus |
| MIN txiav txim kom muaj nuj nqis |
Nyob ntawm cov khoom siv tsis txaus ntseeg: Yog tias peb tau npaj xa cov khoom thauj khoom, tom qab ntawd txawm 100 pcs nrog cov qauv kuaj lub hom phiaj yuav siv tau ntawm no. Yog tias tsis muaj Tshuag, ces peb xav tau min qhov kev txiav txim kom muaj nuj nqis nrog tsawg kawg 10,000 pcs. |
| Kev lav | 4 xyoos |
| OEM kev pabcuam |
1. Skd feem muaj; 2. Mekas LED array nrog qhov loj uas koj xav tau yog OK ntawm no. |
GMKJ EMC 5050 SMD LED Tag Nrho SeriesDaim duab
 |
 |
| Round Les EMC 5050 SMD LED Diode | Square les emc 5050 SMD LED Diode |
Txhuas LED PCBA sib sau ua ke los ntawm GMKJ (PCB Teeb Duab thiab BOM muab los ntawm peb cov neeg siv khoom)
Dawb Xim IIVDC 5W 5050 SMD LED DIODEQho loj dav
Dawb Xim IIVDC 5W 5050 SMD LED Diode Hluav Taws Xob Cov Hluav Taws Xob
|
Chaw ua uas tsis tau haus |
Lub cim |
Yam xwm txheej |
Lub min |
Avg. |
Tus zuag |
Tej nyob |
|
Tom ntej voltage (正向压降) |
VF |
IF=120 ma |
8.6 |
-- |
9.0 |
V |
|
Tom ntej voltage (正向压降) |
VF |
IF=450 ma |
8.8 |
-- |
9.4 |
V |
|
Luminous Flux (光通量) |
Φv |
IF=120 ma |
190 |
210 |
Lm |
|
|
Luminous Flux (光通量) |
Φv |
IF=450 ma |
650 |
700 |
Lm |
|
|
Teeb Pom Kev Zoo (光效) |
Lm / w |
IF=120 ma |
200 |
220 |
Lm / w |
|
|
Xim Xim 色容差 |
IF=450 ma |
-- |
-- |
5 |
Sdcm |
|
|
Cri (显色指数) |
Ra |
IF=450 ma |
70 |
-- |
-- |
-- |
|
Kub coefficient ntawm cov voltage rau pem hauv ntej (正向压降之温度系数) |
∆VF/∆T |
IF=450 ma |
−− |
-2 |
−− |
MV / degree |
|
Rov qab tam sim no (反向漏电流) |
IR |
VR=15V |
−− |
−− |
10 |
μ A |
|
Thermal Kuj Dhos Ntaus Ntawv (热阻) |
RΘJ-S |
IF=450 ma |
-- |
3 |
-- |
Degree / w |
|
Saib lub kaum ntse ntse ntse [1] (发光角度) |
2Θ1/2 |
IF=450 ma |
−− |
120 |
−− |
DEG |
Amember kub 色温 Yog =120 ma ta =25 degree
|
Chaw ua uas tsis tau haus |
Lub cim |
Yam xwm txheej |
Lub min |
Avg. |
Tus zuag |
Tej nyob |
|
Pn: Ge - 5050w270-3c3z-J2B2D0-R70 |
CCC |
IF=120 ma |
-- |
2700 |
-- |
K |
|
Pn: Ge - 5050w300-3c3z-j2b2d0-r70 |
CCC |
IF=120 ma |
-- |
3000 |
-- |
K |
|
Pn: Ge - 5050-3c3z-j2b2d0-r70 |
CCC |
IF=120 ma |
-- |
3500 |
-- |
K |
|
Pn: Ge - 5000-3c3z-j2b2d0-r70 |
CCC |
IF=120 ma |
-- |
4000 |
-- |
K |
|
Pn: Ge -} 5000w500-3c3z-j2b2d0-r70 |
CCC |
IF=120 ma |
-- |
5000 |
-- |
K |
|
Pn: Ge -} 50-3w570-3c3z-j2b2d0-r70 |
CCC |
IF=120 ma |
-- |
5700 |
-- |
K |
|
Pn: Ge - 5050W650-3C3Z-J2B2D0-R70 |
CCC |
IF=120 ma |
-- |
6500 |
-- |
K |
|
Xim Xim 色容差 |
IF=120 ma |
-- |
-- |
5 |
Sdcm |
|
|
Cri (显色指数) |
Ra |
IF=120 ma |
70 |
-- |
-- |
-- |
Vim li cas peb thiaj yuav tsum siv 9VDC voltage tswv yim 5050 SMD LEDs es tsis txhob siv 3VDC lossis 6VDC rau lub teeb ci hauv automotive?
Vim li cas siv 9VDC 5050 SMD LEDs hloov 3VDC lossis 6VDC rau lub teeb pom kev zoo tsheb?
Qhov zoo dua qub nrog lub tshuab hluav taws xob tsheb
Ib txwm siv tsheb hluav taws xob khiav ntawm12–14.4V.
Siv 9V LEDs tso cai rau cov tsim qauv tsav1 coj + ib tug me res resistorncaj qha los ntawm lub tsheb roj teeb.
3V LEDs xav tau4 LEDs hauv kaumkom phim tus voltage.
6V coj2 coj nyob rau hauv series.
Nrog 9V LEDs, tus tsim yog yooj yim thiab txuag tau pcb chaw.
Qis dua cua sov ntawm resistors / zoo dua efficiency
Thaum siv 12-14V cov tswv yim, qhov sib txawv ntxiv (qhov sib txawv ntxiv ntawm LED VF thiab cov hluav taws xob voltage) poob hla lub resistor.
9V coj →ME ME VOLTION, qis resistor zog poob
3V / 6V LEDS →loj dua poob, kub dua kub thiab qis dua
Yog li 9V LEDs txhim kho kev ua haujlwm thermal thiab hluav taws xob ua tau zoo.
Ntau ruaj khov ua tau zoo nyob rau hluav taws xob hloov pauv
Lub tsheb ib puag ncig muaj ntau voltage spikes thiab tee.
9V LEDs muabTus dav dav nyab xeeb kev ua hauj lwm npoo, kom ntseeg tau cov LED tam sim no tseem nyob ruaj khov nrog cov khoom siv me hloov pauv.
Yooj Yim Tsav Tsheb Circuit Court & Tus Nqi
Nrog tsawg dua LEDs hauv koob thiab ib tus neeg tiv thaiv me, tus neeg tsav tsheb tsim ua tau yooj yim dua:
Tsawg Cheebtsam
Tsawg Bom Nqi
Siab dua kev ntseeg tau (tshwj xeeb tshaj yog rau lub teeb lub tsheb)
Cov khaub ncaws zoo dua rau ntau - LED modules
Siv 9V LEDs ua kom nws yooj yim dua:
xwm yeem ci ntsa iab
Sib npaug rau kev faib tawm tam sim no
Txhim kho tag nrho cov kev ntseeg tau ntawm lub teeb modules (tw teeb, DLS, sab hauv teeb)
Ntsiab lus (Yooj yim):
9V 5050 LEDS sib phim automotive 12v tshuab zoo dua, txo cov cua sov ploj, yooj yim muab cov kev tsim hluav taws xob, thiab txhim kho kev ntseeg tau.
Tias yog vim li cas 9v LEDs feem ntau nyiam tshaj 3V lossis 6V hom rau kev teeb pom kev zoo tsheb.
Nrhiav cov ntsiab lus ntxiv
Koj tuaj yeem rub tawm cov datasheet ntawm nplooj ntawv no rau SMD RAWS LI.
Yog tias koj xav tau cov ntsiab lus ntxiv zoo li tus nqi, MIN txiav txim kom muaj nuj nqis, Tshuag cov xwm txheej thiab cov thawj lub sijhawm ua, thov hu rau GMKJ coj tus coj ncaj qha!
Peb ib txwm nyob ntawm no rau koj!
