Khoom Description
Dawb 10W 12V 700mA 3535 SMD LED nti nrog Dome lens specs:
| Khoom npe | Dawb 10W 12V 700mA 3535 SMD LED nti nrog Dome lens |
| Tshooj naj npawb | GD-3535W600-4CD0-SA40M |
| Chips hom | Tuam Tshoj Sanan 40mil nrog 4 chips sab hauv |
| Tswv yim | 11-13vdc, max 700mA rau pem hauv ntej tam sim no |
| Flux |
1000-1200lwm |
| Xim kub | 2700K, 3000K, 4000K, 5000K thiab 6500K muaj nyob ntawm no |
| Hwj chim |
10 Watt |
| Ceramic pob khoom | ALN ceramic |
| Lub teeb pom kev zoo |
120 degree nrog dome silicone lens, pom zoo heev! 120 degree nrog tiaj ceramic pob; |
| Hom thiab manufacturers | GMLEDs, GMKJ |
| Warranty | 3 xyoo |
| Kev pabcuam OEM |
1. SKD qhov chaw muaj; 2. Star pcb boards soldering los yog lwm yam pcb boards soldering kev pab txhawb nqa; 3. Tshwj xeeb wavelength customized: los ntawm 255-1600nm wavelength muaj nyob ntawm no. |

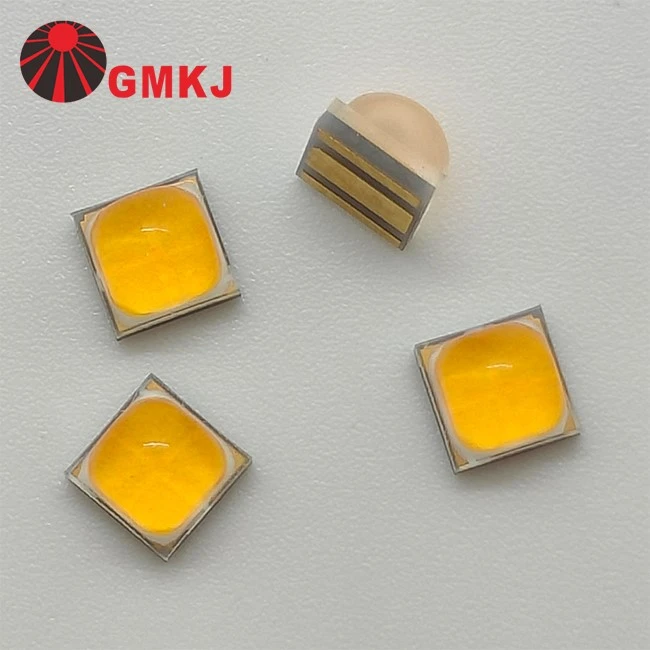

Dawb 10W 12V 700mA 3535 SMD LED nti nrog Dome lens duab:
Dawb 10W 12V 700mA 3535 SMD LED nti nrog Dome lens PCB vuam kev pab:
Dawb 10W 12V 700mA 3535 SMD LED nti nrog Dome lens qhov ntev:
Dawb 10W 12V 700mA 3535 SMD LED Chip nrog Dome Lens Hluav Taws Xob Specs:
|
Parameter |
Cim |
Cov xwm txheej |
Min |
Avg. |
Max |
Chav tsev |
|
Forward Voltage |
VF |
IF=700mA |
11.00 |
-- |
13.00 |
V |
|
Thermal Resistance Junction To Board |
RΘJ-B |
IF=700mA |
-- |
2 |
-- |
degree / W |
|
Luminous Flux |
Φv |
IF=700mA |
1000 |
-- |
1200 |
ib lm |
|
Xim kub |
CCT |
IF=700mA |
6000 |
-- |
7000 |
K |
|
CRI |
Ra |
IF=700mA |
70 |
-- |
-- |
-- |
|
Rov qab tam sim no |
IR |
VR=20V |
−− |
−− |
10 |
μ A |
|
Saib lub kaum sab xis |
2Θ1/2 |
IF=700mA |
−− |
120 |
−− |
Deg |
Hais txog GMLEDs
GMLEDs Company Video hauv 2024:
nyob rau hauv SMD LED pob Hoobkas hauv Suav teb
Guangmai Electronics 'cov khoom lag luam muaj npe nrov rau lawv qhov zoo tshaj plaws thiab tau siv dav hauv ntau yam xws li lub zog tshiab, 3D luam ntawv, number case drying, automation khoom, low-altitude drones, kev ruaj ntseg soj ntsuam, kev zoo nkauj thiab kev kho mob, tshuaj tua kab mob thiab sterilization, cog supplementary teeb pom kev zoo, toj roob hauv pes teeb pom kev zoo, thiab dav dav illumination. Cov khoom raug xa tawm mus rau ntau tshaj 50 lub teb chaws thiab cheeb tsam thoob ntiaj teb, tau txais kev qhuas thiab kev ntseeg siab ntawm cov neeg siv khoom hauv kev lag luam thoob ntiaj teb.
Yog xav paub ntxiv, thov hu rau peb ncaj qha!
