Kev qhia tshwj xeeb
Peb muaj ntau qhov sib txawv 2835 pob ntawm no.
0.2W 0.5W thiab max 1W lub zog ntsuas muaj nyob ntawm no.
Tsis tas li tshwj tsis yog 3VDC hom kev tawm tswv yim, peb muaj 6V, 9V thiab 18V tawm ntawm no.
9V thiab 18V yog siv los ua AC LED pcba cov laug cam.
2835 LED SERIES SPECIFICATION | ||||||
Khoom Lub Npe | Lub Teeb Xim | CCT/Wavelength | Voltage | Tam sim no | Lumen | Lus Cim |
0.2W 2835 LED | Kub daj | 1800-2000K | 2.8-3.4V | 60mA ua | 24-30 hli | CRI80,90 |
0.2W 2835 LED | Dawb | 3000-6500K | 2.8-3.4V | 60mA ua | 24-34 LWM | CRI 80,90,96 + |
0.5W 2835 LED | Dawb | 3000-6500K | 2.8-3.4V | 150 mA ua | 55-75 hli | CRI 80,90,96 + |
1W 2835 LED | Dawb | 3000-6500K | 6/9/18/36V | 150/100/50/30mA | 90-150 hli | High Voltage Series |
2835 UV LED | UV | 365-410nm | 3/6/9V | 60/150/175/100mA | / | 0.2W, 0.5W, 1W |
2835 Xiav LED | Xiav | 440-470nm | 3/6/9V | 60/150/175/100mA | 4-20 hli | 0.2W, 0.5W, 1W |
2835 Ntsuab LED | Ntsuab | 520-530nm | 3/6/9V | 60/150/175/100mA | 18-80 hli | 0.2W, 0.5W, 1W |
2835 Amber LED | Daj/Amber | 590-610nm | 2/4/6V | 60/150/175/100mA | 6-20 hli | 0.2W, 0.5W, 1W |
2835 Liab LED | Liab | 620-630nm | 2/4/6V | 60/150/175/100mA | 8-30 hli | 0.2W, 0.5W, 1W |
2835 Far Liab | Liab Qab | 660-665nm | 2/4/6V | 60/150/175/100mA | 3-12 hli | 0.2W, 0.5W, 1W |
2835 IR LED | IR | 730-750nm | 2/4/6V | 60/150/175/100mA | / | 0.2W, 0.5W, 1W |
2835 IR LED | IR | 850nm | 2/4/6V | 60/150/175/100mA | / | 0.2W, 0.5W, 1W |
2835 PC Xiav | Phosphor Xiav | 450-470nm | 3/6/9V | 60/150/175/100mA | 6-30 hli | 0.2W,0.5W,1W |
2835 PC Ntsuab | Phosphor Ntsuab | 510-530nm | 3/6/9V | 60/150/175/100mA | 18-120 hli | Customized WD, WP |
2835 PC Xim | Phosphor Amber/Liab | 600-630nm | 3/6/9V | 60/150/175/100mA | 10-60 hli | |

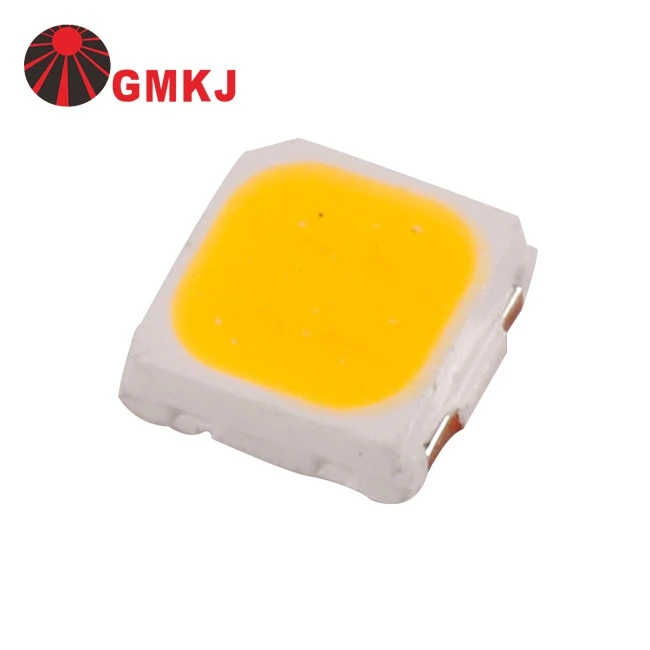

Khoom Lub Npe | 2835 SMD LED Chip Lumens 70LM | Khoom Qauv | GS-2835W-70 |
Lub Hwj Chim Tawm | 0.5W | Xim Rendering Index | 70 |
Forward Voltage | 3V | Saib Lub | 120° |
Mus Ntxiv Tam Sim No | 150 mA ua | Kev Ua Haujlwm Kub | -40~+60 ℃ |
Luminous Flux | 70-75LM ntawm 120mA | Cia Kub | -40~+85 ℃ |
Xim Kub | 3000-6000K | Soldering Kub | 260℃ |
2835 SMD LED CHIP Dimension Cov Ntaub Ntawv
2835 SMD LED CHIP Ntshiab Saib
GMKJ cov khoom tseem ceeb suav nrog COB LED, flip chip COB LED, 3030 SMD LED, EMC 5050 SMD LED, ceramic 3535 SMD LED, 1-5W K2 High Power Emitter, Horticultural full spectrum LEDs, LED PCBA thiab LED modules nrog lens. GMKJ muab kev qhia paub ntau yam thiab kev txhawb nqa rau LED teeb pom kev tsim, kev daws teeb meem thiab teeb pom kev zoo.
2835 SMD LED Chip Daim Ntawv Thov
Peb Qhov Zoo
Qhov zoo ntawm kev sib tw ntawm peb cov LEDs:
1. Zoo lav zoo, 50000 teev lub neej, 2-5 xyoo lav.
2. Cov kws tshaj lij thiab cov neeg ua haujlwm paub dhau los.
3. Lub sijhawm luv luv, feem ntau 1-7 hnub ua haujlwm.
4. Kev kho tshwj xeeb muaj nyob hauv CCT, CRI, Lumen, VF, Xim, thiab lwm yam.
5. Ntau hom qauv, xws li SMD LED, 1-5W siab zog LED, 1-1500W ua ke LED.
Peb Qhov Kev Pabcuam
Muaj zog R& D Rog
Ib qho loj tshaj R& D kev pabcuam ntawm cov tuam txhab LED thoob ntiaj teb. Muaj zog R& D pab pawg ntawm ntau dua 40 tus kws tshaj lij kev paub.
Ntiaj teb tus qauv CNAS Kev lees paub Laboratory.
Tua tawm cov khoom lag luam tshiab sib tw raws caij nyoog.
Kev hloov pauv hloov pauv rau tag nrho ntawm lub zog siab& siab koom ua ke tej hub ntxeev nti coj& compact siab zog SMDs.
· Teb koj cov lus nug hauv 12 teev ua haujlwm
· Cov neeg ua haujlwm tau kawm zoo thiab paub dhau los los teb txhua yam koj nug hauv Lus Askiv zoo.
· Nruj tswj cov txheej txheem ua ntej xa zaub mov.
· Kev tsim kho tshwj xeeb yog muaj.OME thiab ODM tau txais tos
· Xa cov khoom mus rau peb cov neeg siv khoom thoob plaws ntiaj teb nrog kev nrawm thiab raug.
Cim npe nrov: 2835 SMD LED nti lumens 70lm, Tuam Tshoj, tuam ntxhab, cov chaw muag khoom, lub Hoobkas, tus nqi, pheej yig, hais tawm, ntawv teev tseg, kev qhia tshwj xeeb, kev qhia tshwj xeeb
