Qhuav Taw Qhia

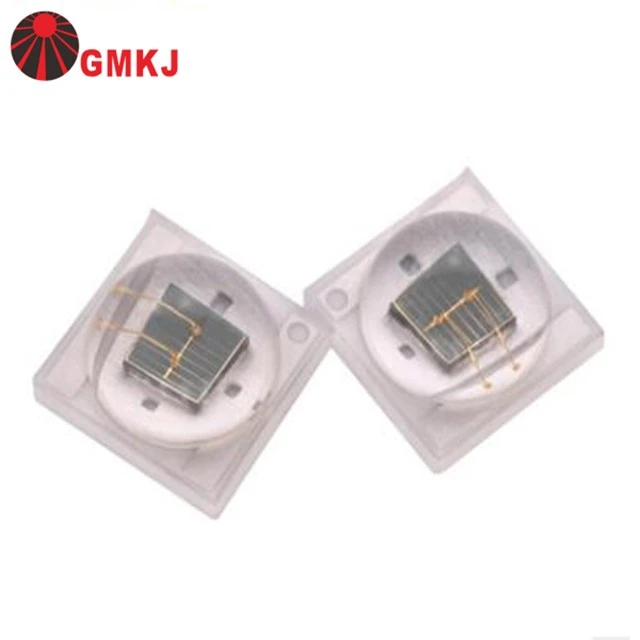

| Lub npe | High hluav taws xob fais fab 3535 smd coj 405nm 1w 3w uv coj |
| Hwj chim | 3w |
| Tam sim no | 700 mA |
| Qhov hluav taws xob | 3. 6-4 0vdc |
| Radiant flux | 800-1000mW |
| Chip hom | Epiles |
| Lub wavelength | 395-405nm |
| Lub neej ntev | 50000 teev |
| Saib lub kaum sab xis | 120 degree |
| Kev siv | UV curing tshuab, uv curing system, muaj sterilization, uv coj teeb, industrial raug, disinfection sterilization, dej system thiab lwm yam |
Khoom parameters
Nta
* Ntshiab violet lub teeb: lub ntuj xim glows yam tsis muaj discoloration.
* Ceramic substrate: Aluminium nitride ceramic substrate nrog lub zog siab, siab thermal conductivity thiab siab rwb thaiv tsev yog siv.
* Cov txheej txheem tseem ceeb: kub kub sib txuas nano-silver paste khoom siv lead ua txheej txheem.
* Ultra-ntev lifespan: UV LEDs feem ntau muaj lub neej ntev ntawm 5000-15000 teev, uas yog ntau tshaj 10 npaug ntawm cov tsoos mercury teeb kho tshuab.
* Kev ua haujlwm siab thiab txuag hluav taws xob: UV LED lub teeb hloov pauv yog siab li 40 feem pua, lub teeb pom kev ruaj khov, thiab kev siv hluav taws xob tsawg.
* Kev nyab xeeb thiab kev tiv thaiv ib puag ncig: ULED txais DC tsav qis, tsis muaj mercury, yog cov pa roj carbon tsawg thiab ib puag ncig tus phooj ywg, thiab yog ib qho kev nyab xeeb thiab zoo ib puag ncig lwm txoj hauv kev siv lub teeb pom kev zoo.
About uv teeb
UV ntshav lub teeb kev faib tawm
1. UVA: curing printing, kev zoo nkauj thiab ntsia thawv kos duab, kab ntxiab, kuaj hniav nyiaj hniav kub, suav nyiaj thiab luam tawm, cog ntau lawm 320-420m, tseem hu ua ntev-yoj ultraviolet
2. UVB: Kev kho mob phototherapy, tsiaj yug tsiaj, cog kev loj hlob, 285-315nm, tseem hu ua medium yoj ultraviolet.
3. UVC: sterilization, txuag lub cev, huab cua, purification, dej purification, 200-275m tseem hu ua luv-yoj ultraviolet, peb lub Hoobkas tsim 250-280n wavelength UV LEDs uas tau lees paub los ntawm lub ntiaj teb no raws li muaj zoo sterilization nyhuv.
Hais txog peb
1. Muab UVA, UVB, UVC teeb hlaws.
2. Muab cov neeg siv khoom nrog kev txhawb nqa PCB, cov cuab yeej siv hluav taws xob ntsig txog thiab cov kev pabcuam kuaj kev ua haujlwm.
3. Pab cov neeg siv khoom tsim cov khoom siv hluav taws xob thiab muab kev pab cuam tom qab muag.
4. Muab cov kws tsim hluav taws xob zoo tshaj plaws thiab cov qauv tsim qauv los pab cov neeg siv khoom, thiab ua haujlwm ua ke los tsim thiab tsim cov khoom zoo.
5. Lub Hoobkas ncaj qha muag, tus nqi pheej yig, tsis muaj neeg nruab nrab.
Kev xa khoom
FAQ
1. Kuv puas tuaj yeem yuav tsuas yog qee qhov qauv los kuaj?
Yog lawm, peb txhawb kev txiav txim me me.
2. Kuv yuav them li cas?
Tam sim no, peb txhawb nqa TT, Alibaba daim ntawv pov hwm qiv nyiaj, PayPal thiab lwm yam kev them nyiaj.
3. Kuv yuav tso qhov kev txiav txim li cas?
Thov hu rau peb tus thawj tswj kev muag khoom los ntawm email.
4. Koj cov khoom puas muaj kev lees paub zoo?
Yog lawm, peb cov khoom tau lees paub los ntawm FCC, CE, LM80, thiab lwm yam.
5. Kuv yuav ua li cas yog tias muaj teeb meem nrog cov khoom zoo?
Peb muab kev pab cuam tom qab muag, yog li yog tias muaj teeb meem zoo, thov hu rau peb hauv lub sijhawm los daws nws.
