Kev piav qhia ntau lawm

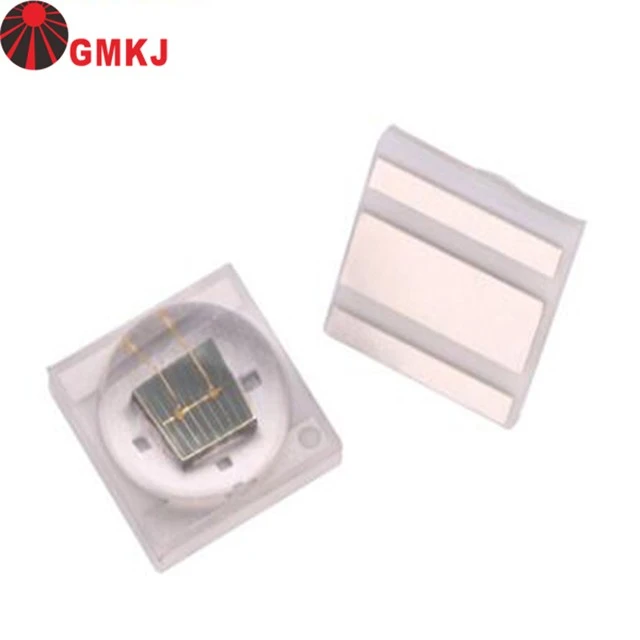

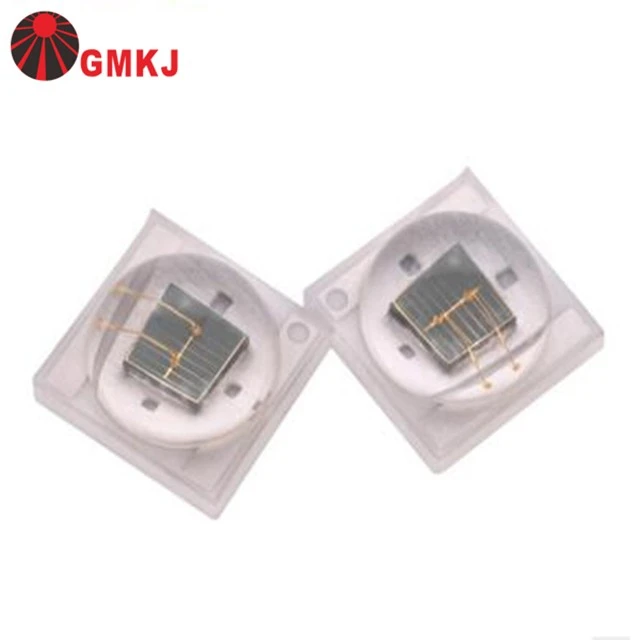

Infrared LED 850nm 840nm 830nm 3535 LED IR yog DC 1.6-2.2V, 1W thiab 3W muaj. Hom chips yog Taiwan Epileds. Infrared LED 850nm 840nm 830nm 3535 LED IR yog tsuas yog siv nyob rau hauv liab coj kev kho lub teeb, infrared coj kho lub teeb, infrared lub koob yees duab, iris, lub ntsej muag paub thiab hais txog.
| Yam khoom | Infrared LED 850nm 840nm 830nm 3535 LED IR |
| Hwj chim | 1W 3W |
| Input voltage | DC 1 6-2.2V |
| Hom | Infrared LED / IR LED / High Power LED |
| Lub wavelength | Infrared LED 850nm 840nm 830nm |
| Warranty | 3 xyoo |
| Daim ntawv thov | Liab LED Kho Lub Teeb / Infrared Lub Koob Yees Duab |
Ntau yam nta
Chip hom: Taiwan Epileds
Saib lub kaum ntse ntse: 30/60/90 degrees
Lub neej: 30000h
Teeb pom kev tam sim: Tsawg dua 0.0001s
Cov ntawv pov thawj: CE, RoHS, FCC, SGS, Lm-80
Rhiav Show
Guangmai Technology Co., Limited tau tsim nyob rau hauv Shenzhen, Tuam Tshoj nyob rau hauv 2009, nrog ntau tshaj 13 xyoo ntawm superb OEM kev.
Peb tsuas yog tsim 3030/3535/2835/5050/5730/3014/3528 SMD LED/1-3W emitter siab zog LED/3-100W COB LED: loj 1313/1919/2828/4046/UV LED / IR LED.
Tag nrho cov chips peb siv yog cov chips nto moo hauv ntiaj teb: Osram / Bridgelux /
Peb tos ntsoov yuav koom tes nrog koj!
FAQ
Q1: Koj puas muab kev pabcuam OEM, ODM?
A1: Yog lawm, nws tuaj yeem ua tiav.Learnew tsom rau OEM & ODM kev pabcuam ntau dua 13 xyoos.
Q2: Lub warranty ntev npaum li cas?
A2: Lub warranty yog 3 xyoos.
Q3: Kuv tuaj yeem tau txais cov lus hais li cas?
A3: Thov tso peb cov lus nrog koj cov kev xav tau tshwj xeeb, peb pab neeg yuav teb koj hauv ib teev.
Q4: Koj puas muaj lwm yam khoom lag luam muag?
A4: Yog lawm, thov tso peb cov lus yam khoom koj xav tau, peb yuav teb koj li ntawm ib teev.
Q5: Puas yog koj lub rooj cob qhia cov duab tiag tiag?
A5: Yog lawm, cov duab thaij duab ntawm nplooj ntawv no yog 100 feem pua ntawm peb pab neeg.
Kev Paub Txog
Dab tsi yog qhov txawv ntawm Infrared LED Teeb thiab Laser Teeb?
Hais txog cov khoom siv, lub teeb infrared tau muab faib ua ob hom: LED teeb-emitting diodes thiab laser infrared teeb. Ntawm lawv, LEDs yog qhov siv dav tshaj plaws thiab siv tau zoo, thiab kev saib xyuas kev ncua deb yog zoo dua li ntawm 150 meters. Lub teeb infrared nrog wavelengths ntawm 850nm thiab 940nm yog qhov pom tsis pom, nrog cov yam ntxwv ntawm kev zais thiab txuag hluav taws xob.
LED infrared teeb tau muab faib ua ob pawg: liab cua daj cua dub thiab tsis muaj cua daj cua dub: liab cua daj cua dub txhais tau hais tias lub teeb infrared pom lub teeb liab, thiab tsis muaj cua daj cua dub yog qhov tsis sib xws. Qhov no tuaj yeem txiav txim tau raws li qhov wavelength ntawm lub teeb infrared.
Muaj cov cua daj cua dub nrog lub wavelength ntawm 850nm. Thaum pom nyob ze, lub teeb infrared yuav tawm teeb liab tsaus.
Lub wavelength ntawm tsis muaj cua daj cua dub yog 940nm, thiab qhov chaw ntawm lub teeb infrared tsis muaj lub teeb, yog li nws yog qhov zais ntau dua. Tab sis qhov ntev ntawm lub wavelength, qhov me me ntawm cov cua daj cua dub, thiab txawm tias tsis muaj cua daj cua dub.
Hom lub teeb infrared xaiv yog nyob ntawm koj qhov kev xav tau tiag tiag. Txhawm rau txiav txim siab seb lub koob yees duab infrared puas zoo lossis tsis zoo, nws tseem yuav tsum tau xav txog cov kev txhawb nqa, vim nws tseem yuav cuam tshuam los ntawm lwm yam.
Tsis tas li ntawd, lub teeb infrared muaj qhov yuav tsum tau nruj ntawm qhov voltage, thiab yuav tsum sim xaiv ib-rau-ib qho kev tswj fais fab mov nrog AC 24V lossis DC. Yog hais tias lub hwj chim mov voltage yog dheev nce, lub teeb infrared yuav raug hlawv, thiab lub teeb infrared yuav tsum tsis txhob dismantled yam tsis tau kev tso cai.
