Khoom Description
Infrared 1600nm 1650nm 3W 700mA 3535 SMD LED Specs:
| Khoom npe | Infrared 1600nm 1650nm 3W 700mA 3535 SMD LED |
| Tshooj naj npawb | GT-3535R1630-1CC0-JC42M |
| Chips hom |
Taiwan Jingcheng 42 * 42mil nti |
| Tswv yim |
{{0}}}8-1.0vdc nrog max 1000mA rau pem hauv ntej tam sim no |
| Radiation zog |
30-40mW ntawm 700mA rau pem hauv ntej tam sim no |
| Teeb pom kev zoo |
Invisiable IR teeb, tsis muaj cov ntaub ntawv teeb pom kev zoo |
| Xim |
Lub wavelength: 1600-1650nm muaj |
| Hwj chim |
3 Watt nrog max 1000mA |
| Ceramic pob khoom |
Ceramic pob; |
| Lub teeb pom kev zoo |
120 degree dome silicone lens, Lwm lub teeb pom kev zoo xws li 30, 60 thiab 90 degree muaj nyob ntawm no nrog rau Min txiav txim kom muaj nuj nqis. |
| Hom thiab manufacturers | GMLEDs, GMKJ |
| Warranty | 3 xyoo |
| Kev pabcuam OEM |
1. SKD qhov chaw muaj; 2. Aluminium pcb boards LED sib dhos kev pabcuam kuj muaj nyob ntawm no. |

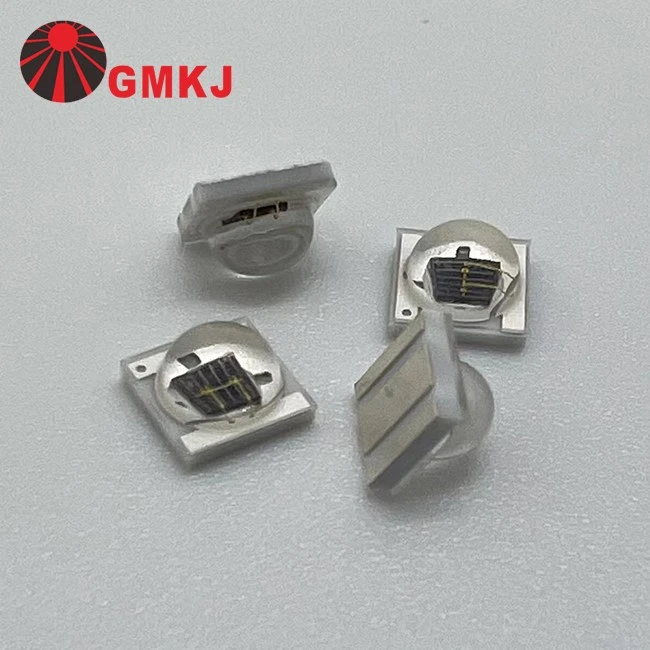

Infrared 1600nm 1650nm 3W 700mA 3535 SMD LED duab:
| 120 degree teeb pom kev zoo lub kaum sab xis duab | 30, 60 thiab 90 degree teeb pom kev zoo nrog lub ntsej muag ntse coj lub lens |
 |
 |
Infrared 1600nm 1650nm 3W 700mA 3535 SMD LED pcb boards los ua ke kev pabcuam muaj:
| Aluminium hnub qub pcb boards los ua ke, txoj kab uas hla 20mm | 10 leds thiab 20 leds tooj liab smd coj boards sib dhos nrog 10S1P thiab 10S2P Circuit Court tsim |
 |
 |
Infrared 1600nm 1650nm 3W 700mA 3535 SMD LED pob qhov ntev:
Infrared 1600nm 1650nm 3W 700mA 3535 SMD LED Hluav Taws Xob Specs:
|
Parameter |
Cim |
Cov xwm txheej |
Min |
Avg. |
Max |
Chav tsev |
|
Forward Voltage |
VF |
IF=700mA |
0.80 |
-- |
1.00 |
V |
|
Thermal Resistance Junction To Board |
RΘJ-B |
IF=700mA |
-- |
6.5 |
-- |
degree / W |
|
Radiant Flux |
Φe |
IF=700mA |
30 |
-- |
40 |
mW |
|
Peak wavelength |
λp |
IF=700mA |
1630 |
-- |
1650 |
nm |
|
Rov qab tam sim no |
IR |
VR=1V |
−− |
−− |
10 |
μ A |
|
Saib lub kaum sab xis |
2Θ1/2 |
IF=700mA |
−− |
120 |
−− |
Deg |
Daim ntawv thov
Infrared 1600nm 1650nm 3W 700mA 3535 SMD LEDdaim ntawv thov
Infrared 1600nm 1650nm 3W 700mA 3535 SMD LED yog tsuas yog siv rau lub koob yees duab kev ruaj ntseg, CCTV koob yees duab thiab tsis siv neeg sorting tshuab thiab lwm yam kev siv.
Hais txog GMLEDs
Daim ntawv pov thawj muaj nyob rau hauv GMLEDs
Guangmai Technology Certificates
CE
CE-LVD
FCC
ROHS
ISO9001
LM -80
Guangmai Electronics 'cov khoom lag luam muaj npe nrov rau lawv qhov zoo tshaj plaws thiab tau siv dav hauv ntau yam xws li lub zog tshiab, 3D luam ntawv, number case drying, automation khoom, low-altitude drones, kev ruaj ntseg soj ntsuam, kev zoo nkauj thiab kev kho mob, tshuaj tua kab mob thiab sterilization, cog supplementary teeb pom kev zoo, toj roob hauv pes teeb pom kev zoo, thiab dav dav illumination. Cov khoom raug xa tawm mus rau ntau tshaj 50 lub teb chaws thiab cheeb tsam thoob ntiaj teb, tau txais kev qhuas thiab kev ntseeg siab ntawm cov neeg siv khoom hauv kev lag luam thoob ntiaj teb.
Yog xav paub ntxiv, thov hu rau peb ncaj qha!
