Khoom Description

660nm 850nm LED 2in1 rau liab kho lub teeb specs qhia hauv qab no:

Khoom npe	660nm 850nm LED 2in1 rau kev kho lub teeb liab
Tshooj naj npawb	GT-3535R66R85-2BC0-GH32GH38M
Chips hom	Taiwan Epiled 2 chips sab hauv
Tswv yim	350mA rau txhua xim
Radiation zog	400-500mW rau 660nm; 150-250mW rau 850nm
Xim	2 hauv 1: 1. tob liab 655-665nm 2. infrared 845-855nm
Hwj chim	2 * 1W tag nrho 2 Watt ib smd coj
Board khoom	ceramic smd coj board
Lub teeb pom kev zoo	Hom tsis tu ncua nrog 120 degree 30, 60 thiab 90 degree xaiv tau
Hom thiab manufacturers	GMLEDs, GMKJ
Warranty	4 xyoo
Kev pabcuam OEM	Aluminium pcb boards los ua ke kev pabcuam muaj

660nm 850nm LED 2in1 rau liab kho lub teeb rau flash lub teeb loj:

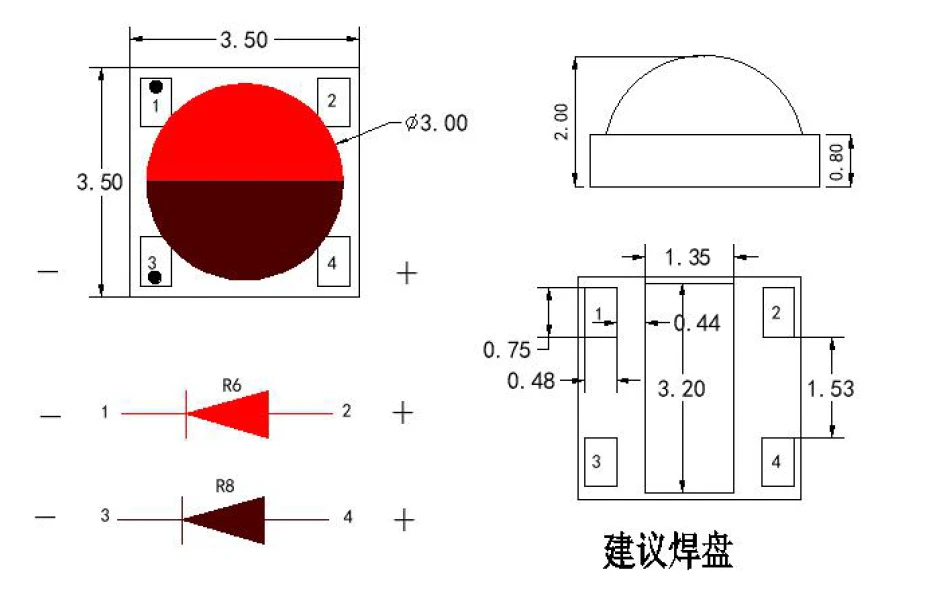

3535 smd led 660nm 850nm for red therapy light

660nm 850nm LED 2in1 rau liab kho lub teeb duab:

120 Degree Lub teeb pom kev zoo	30, 60 thiab 90 degree teeb pom kev zoo lub kaum sab xis

660nm 850nm LED 2in1 rau liab kho lub teeb technical specs:

Parameter	Cim	Cov xwm txheej	Xim	Min	Avg.	Max	Chav tsev
Forward Voltage	V_F	I_F=350mA	R6	2.00	--	2.40	V
			R8	1.40	--	1.80
Radiant Flux	Φe	I_F=350mA	R8	400	--	500	mW
			R8	150	--	250
Peak wavelength	λp	I_F=350mA	R6	655	--	665	nm
			R8	845	--	855
Kub Coefficient ntawm Forward Voltage	∆V_F/∆T	I_F=350mA		−−	-2	−−	mV / degree
Rov qab tam sim no	I_R	V_R=5V		−−	−−	10	μ A
Saib Angl	2Θ_1/2	I_F=350mA		−−	120	−−	Deg
Thermal Resistance Junction To Board	RΘ_J-B	I_F=350mA		--	6.5	--	degree / W

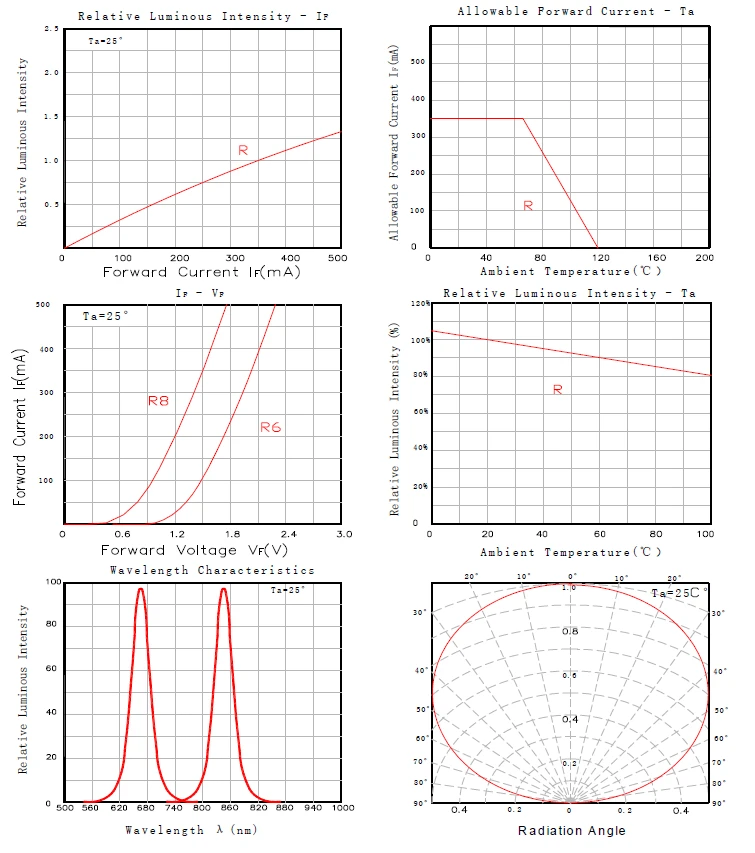

660nm 850nm LED 2in1 for red therapy light technical specs

Daim ntawv thov

660nm 850nm LED 2in1 rau liab kho lub teeb mas siv rau hauv qab no daim ntaub ntawv:

Kev kho lub teeb liab (RLT) yog hom kev kho mob uas yuav pab tau:

kho cov teeb meem ntawm daim tawv nqaij, zoo li stretch marks thiab wrinkles
kho cov tawv nqaij mob, xws li psoriasis, nti, thiab pob txuv
txo o los yog edema
kho cov nqaij mos
txhawb kev laus noj qab nyob zoo

red therapy light smd leds application

Hais txog GMKJ LED

GMKJ yog ISO Certificate Chaw tsim tshuaj paus ntawm cov khoom zoo, kev ntseeg siab LED diodes, tsim nyob rau hauv Lub ib hlis ntuj 2009. Peb cov neeg ua hauj lwm muaj ntau tshaj li 10 xyoo ntawm kev paub lus Askiv zoo. Tag nrho peb cov neeg ua haujlwm muaj kev ua haujlwm zoo thiab kev cog lus ruaj khov los muab cov khoom lag luam zoo uas ua tau raws li cov neeg siv khoom xav tau.

About GMKJ LED

Peb qhov kev pabcuam:
PCB tsim & Reflow soldering kev pabcuam
COB/LED/Drivers customization
Pwm txoj kev loj hlob (Plastic txhaj & Tuag casting)
Cov neeg sawv cev hauv UK, Kaus Lim Kauslim thiab Czech.
ISO9001-2008, SGS, TUV, BV, CNAS accredited laboratory & Optical Lab.

Kev xa khoom

2828 cob led shipment

Shipping Options:
1. Los ntawm Express: xws li DHL, UPS, TNT, FEDEX thiab lwm yam. Lub sij hawm xa tuaj yog li ntawm 10-15 hnub.
2. Huab cua Freight: thaum koj xaj ntau tshaj 100kgs uas yuav muaj kev lag luam ntau dua li nthuav qhia.
3. Hiav txwv Freight: peb yuav hloov kho hiav txwv freight thaum peb paub koj qhov chaw nres nkoj hiav txwv qhov twg cov khoom yuav xa.
4. Tus neeg sawv cev tsim los ntawm cov neeg siv khoom: thov qhia rau peb paub txog kev sib cuag ntawm koj tus neeg sawv cev shipping thiab peb yuav npaj xa cov khoom.

Kev paub

LED kev kho lub teeb yog dab tsi?
Lub teeb emitting diode (LED) kev kho lub teeb yog loj hlob nyob rau hauv muaj koob meej nyob rau hauv ob qho tib si esthetician chaw ua hauj lwm thiab nyob rau hauv tsev. Siv ntau yam LED wavelengths, cov txheej txheem tu tawv nqaij no pab tau:

kho pob txuv
txo qhov mob
txhawb kev tiv thaiv kev laus

Tej zaum koj yuav yog tus neeg sib tw rau kev kho lub teeb LED yog tias koj muaj cov kev txhawj xeeb txog kev tu tawv nqaij thiab tsis tau txais cov txiaj ntsig koj xav tau los ntawm cov khoom siv tawv nqaij (OTC). LED kev kho mob kuj muaj kev nyab xeeb rau txhua yam xim ntawm daim tawv nqaij, thiab nws tsis ua rau muaj kev kub nyhiab.

Txawm li cas los xij, muaj qee qhov kev tsis zoo. Nov yog ob peb:

LED kev kho mob yuav kim.
Cov txiaj ntsig tsis tau lees paub.
Nws kuj tsis muaj kev nyab xeeb yog tias koj noj qee yam tshuaj lossis muaj cov tawv nqaij tsis zoo.

Yog xav paub ntxiv, thov sau rov qab rau peb GMLEDs Team ncaj qha!

Cim npe nrov: 660nm 850nm coj 2in1 rau liab kho lub teeb, Tuam Tshoj, manufacturers, lwm tus neeg, Hoobkas, nqe, pheej yig, hais, datasheet, specs, specification

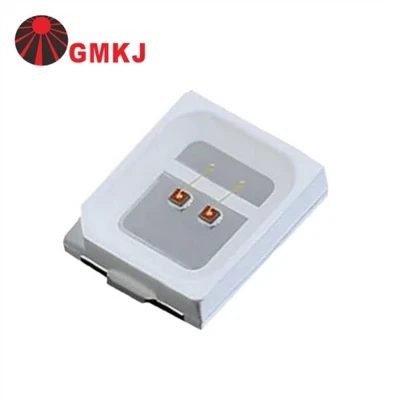

Tug: IR 1400nm 1500nm 1550nm SMD LED nti

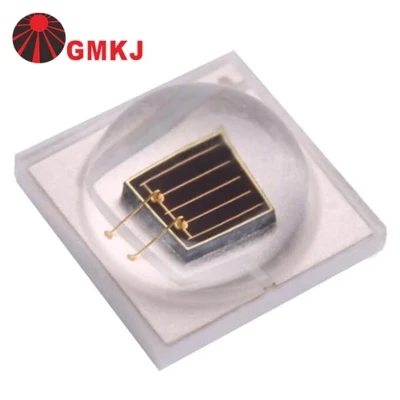

Tom ntej: Nano Stack Ob chav IR 3535 SMD LED 3V
