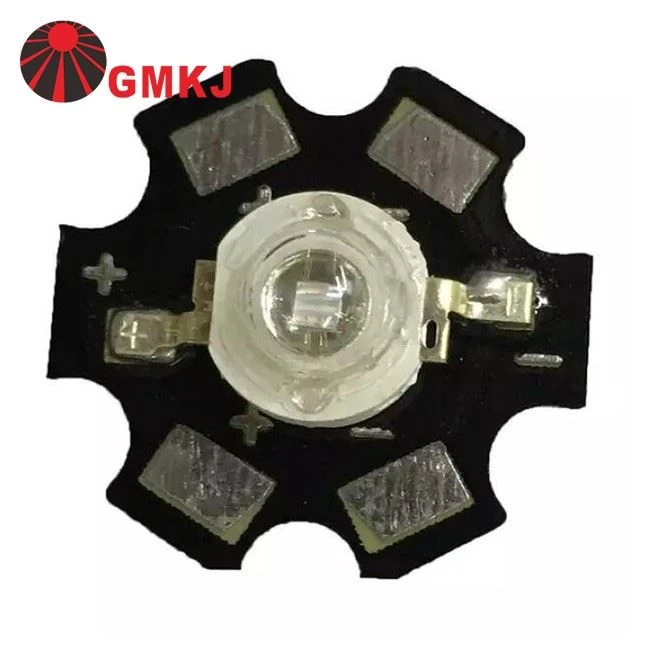

1w uv coj 365nm nrog lub dab dej kub rau kev kho lub teeb pom kev zoo:
· Surface-Mount-Technology 5050 3-9W packages for cost-effective, compact high power LEDs
| GP-1WP6-G45-410 | 1-3W | UVA, 410-425nm | Taiwan Epiles | 4545m ua | 3.2-3.8V | 350-700mA | 10-15 LM |
| GP-1WP5-G45-395 | 1-3W | UVA, 395-405nm | Taiwan Epiles | 4545m ua | 3.2-3.8V | 350-700mA | 5-10 LWM |
| Tus Qauv Zauv: GP-1WP3-G45-380 | 1-3W | UVA, 380-390nm | Taiwan Epiles | 4545m ua | 3.2-3.8V | 350-700mA | 3-5 LWM |
| GP-1WP1-G45-365 | 1-3W | UVA, 365-375nm | Taiwan Epiles | 4545m ua | 3.2-3.8V | 350-700mA | 1-5 LWM |
1w uv coj 365nm nrog lub dab dej kub rau kev kho lub teeb pom kev zoo:
Parameter | Cim | Kev ntsuas | Chav tsev |
DC Forward Current | IF | 700 | m A |
Peak pulse tam sim no | IFP | 700 | m A |
Lub zog Dissipation | PD | 1 | W |
Rov qab Voltage | VR | 5 | V |
Rov qab tam sim no | IR | 10 | μ A |
Kev khiav hauj lwm qhov kub thiab txias | TOPR | - 30 ib 75 | degree |
Cia qhov kub thiab txias | TSTG | -40 Ib., 85 | degree |
LED Qhov Kub Kub | TJ | 125 | degree |
Parameter | Cim | Cov xwm txheej | Min | Avg. | Max | Chav tsev |
Forward Voltage | VF | YOG=350mA ua | 3.2 | 4.0 | V | |
Thermal Resistance Junction To Board | RΘJ-B | YOG=350mA ua | -- | 8 | -- | degreeC/W |
Radiant Flux | Φe | YOG=350mA ua | 600 | 800 | mw ua | |
Peak wavelength | λp | YOG=350mA ua | 365 | 370 | nm | |
Kub Coefficient ntawm Forward Voltage | ∆VF/∆T | YOG=350mA ua | −− | -2 | −− | mV/degreeC |
Rov qab tam sim no | IR | VR=5V | −− | −− | 10 | μ A |
Saib lub kaum sab xis 1 | 2Θ1/2 | YOG=350mA ua | −− | 140 | −− | Deg |
1w uv coj 365nm nrog lub dab dej kub rau kev kho lub teeb pom kev zoo
Hais txog Guangmai LED / GMKJ LED
Shenzhen Guangmai Technology Co, Ltd was established in 2004. As a pioneer in the national purple led industry the company has 13patented products in the field of violet LED, 5 inventions and 8 utility models In recent years, it has expanded into the industrial, medical, and deep-UV fields with industry experience and resource advantages that have accumulated many years in the field of violet LED Products cover UVA, UVB, UVC（260-430nm）widely used in counterfeit money detection, nail phototherapy, mosquito repellent, photocatalyst air purification, industrial light curing, deep ultraviolet sterilization, medical treatment non-destruc tive testing and leak detection, Fluorescence detection, jewelry identification, plant growth and other fields The company carries out all corporate activities under the policy of "Improving and not expensive UVLEDs"and hopes to work with colleagues in the industry to promote the healthy development and popularization of the UVLED market and to contribute to environmental protection.
Kev xa khoom:
Peb xa cov khoom los ntawm UPS / DHL / FEDEX / TNT nthuav qhia uas siv sijhawm 3-5 hnub los txog, lossis los ntawm huab cua cargo uas yuav siv sijhawm li ib lub lis piam los txog, lossis los ntawm hiav txwv uas yuav siv li ib hlis los txog, nyob ntawm seb koj xav tau tiag tiag.
1w uv coj 365nm nrog lub dab dej kub rau kho lub teeb FAQ:
Lub sij hawm xa tuaj:
1. Qauv: 3-7 hnub ua haujlwm;
2. Kev txiav txim ntau: 7-15 hnub ua haujlwm.
Warranty:
2-3 xyoos warranty
Shipping Method:
1. Los ntawm Express: DHL, UPS, Fedex, txoj kev ceev thiab nyab xeeb rau kev xa khoom, feem ntau 3-5 hnub ua haujlwm rau kev xa khoom;
2. Los ntawm Cua: Hauv qee thaj chaw, tus nqi thauj khoom los ntawm huab cua yog qhov zoo dua los ntawm Express; 5-7 hnub rau kev xa khoom;
3. Los ntawm Hiav Txwv: txoj kev xa khoom lag luam tshaj plaws, tab sis tus nqi thauj khoom ntev dua; Cov khoom loj, hnyav thiab tsis ceev cov khoom tuaj yeem xaiv txoj kev no.
4. Koj tus neeg xa khoom xa tuaj lossis xa tawm.
Tom qab-Kev Pabcuam Muag:
1. Ceev teb rau cov neeg siv khoom'cov lus nug;
2. Yog hais tias ib yam dab tsi mus tsis ncaj ncees lawm nrog cov khoom'quality, peb yuav hloov rau koj dawb thiab lees txais tus nqi shipping.3. Ua rau koj zoo siab xaj.
Kev Tswj Xyuas Zoo:
100 feem pua ntawm cov teeb yuav raug kuaj thiab ua kom teeb pom kev zoo rau 24 teev los kuaj nws qhov kev ntseeg tau zoo, thiab peb tseem yuav sim nws; qhov kub thiab txias tom qab 24 teev lub teeb pom kev zoo.Tom qab ntawd tom qab nws txias, peb rov kuaj 100 feem pua ntawm cov teeb pom kev zoo. nws tseem ua haujlwm zoo; Txhua lub teeb yuav tsum dhau tag nrho cov txheej txheem QC ua ntej xa mus rau cov neeg siv khoom.
Delivery Detail:
Peb xa khoom los ntawm UPS / DHL / FEDEX / TNT nthuav qhia uas yuav siv sij hawm 3 5 hnub los txog, lossis los ntawm huab cua cargo uas yuav siv li ib lub lis piam los txog.
los yog los ntawm hiav txwv uas yuav siv li ntawm ib lub hlis los txog, nyob ntawm seb koj xav tau tiag tiag.
Peb cov kev pabcuam:
1. Rau tag nrho koj cov lus nug txog peb lossis peb cov khoom, peb yuav teb koj kom meej hauv 24 teev;
2. Peb muaj tus zoo-kev muag khoom thiab mob siab rau tom qab- kev muag khoom uas tuaj yeem hais lus Askiv zoo;
3. Peb muab kev pabcuam OEM. tuaj yeem luam koj tus kheej lub logo ntawm cov khoom, tuaj yeem hloov kho lub thawv ntim khoom thiab lwm yam.
4. Peb muaj kev paub dhau los ntawm RD engineers thiab peb muaj peev xwm ua tau OEM tej yaam num.
Cim npe nrov: 1w uv coj 365nm nrog lub dab dej kub rau kho lub teeb, Tuam Tshoj, tuam ntxhab, lwm tus muag khoom, Hoobkas, nqe, pheej yig, hais, datasheet, specs, specification
