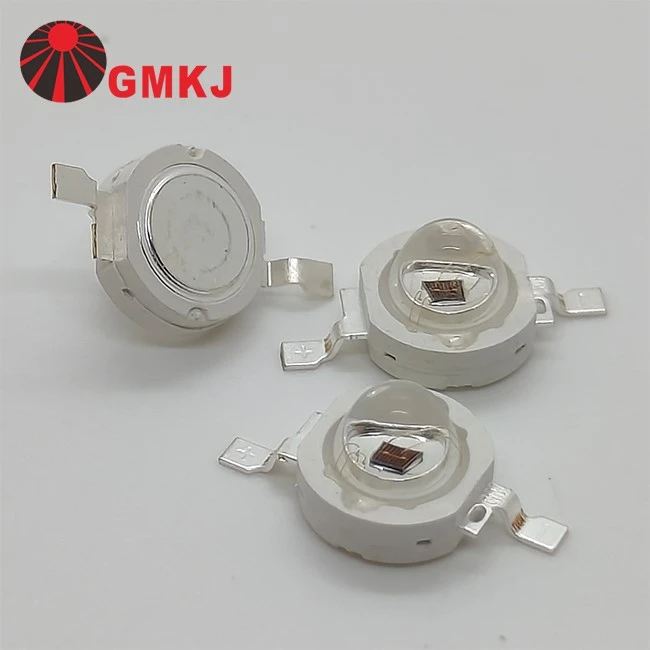

740nm 850nm 940nm 3W 60 Degree IR Fais Fab LED

Taiwan Epiled 42mil

400-600mW ntawm 700mA

Liab liab 730-740nm;

Infrared 800-810nm;

Infrared 850-855nm;

Infrared 940-950nm

3 Watt ntawm 700mA;

Yuav siv tau li 1 Watt ntawm 350mA lossis 2 Watt nrog 500mA tam sim no tsis tu ncua

Copper puag, emitter zog coj

60 degree;

120 degree kuj muaj

1. Aluminium pcb pawg thawj coj saib kev pabcuam muaj

2. Lub hnub qub pcb boards 20mm pcb assembley muaj

Parameter

Cim

Cov xwm txheej

Min

Avg.

Max

Chav tsev

Forward Voltage

V_F

I_F=700mA

1.60

--

1.80

V

Thermal Resistance Junction To Board

RΘ_J-B

I_F=700mA

--

8

--

degree / W

Radiant Flux

Φe

I_F=700mA

400

600

mW

Peak wavelength

λp

I_F=700mA

845

855

nm

Kub Coefficient ntawm Forward Voltage

∆V_F/∆T

I_F=700mA

−−

-2

−−

mV / degree

Rov qab tam sim no

I_R

V_R=5V

−−

−−

10

μ A

Saib lub kaum sab xis

2Θ_1/2

I_F=700mA

−−

60

−−

Deg
