20W 4046 COB LED Tig Teeb Rau Toj Roob Teeb
● Flip Chip Tshuab, Kev ruaj khov zoo
Chip Ntau hom zoo-paub nti rau koj siv: Bridgelux, Epistar, Sanan thiab lwm yam ...
● Tsawg Thermal Kuj, Lub Zog Muaj Peev Xwm Muaj Zog
Ensity Muaj qhov ntom ntom, CRI muaj nyob hauv 70/80/90
Khoom Muag Khoom
Cov Hluav Taws Xob / Hluav Taws Xob Kho qhov muag - Dawb (Ntawm TA=25 ° C)
Tsis | Lub Cim | Cov xwm txheej | Min | Avg. | Max | Chav Nyob |
Kev Hloov Mus Tom Hluav Taws Xob | VF | IF= 600mA | 28.00 | -- | 34.00 | V |
Thermal Kuj Sib Nqus Mus Rau Board | RΘJ-B | IF= 600mA | -- | 8 | -- | °C/W |
Luminous Flux | Φv | IF= 600mA | 2000 | 2400 | lm | |
Xim Xim Kub | CCT | IF= 600mA | 6000 | 6500 | K | |
CRI | Ra | IF= 600mA | 70 | -- | -- | -- |
Kub Coefficient ntawm Kev Kub Ua Ntej | ∆VF/∆T | IF= 600mA | −− | -2 | −− | mV / ° C |
Ntxiag Tam Sim No | IR | VR=50V | −− | −− | 10 | μ A |
Saib Lub Kaum [1] | 2Θ1/2 | IF= 600mA | −− | 120 | −− | Deg |

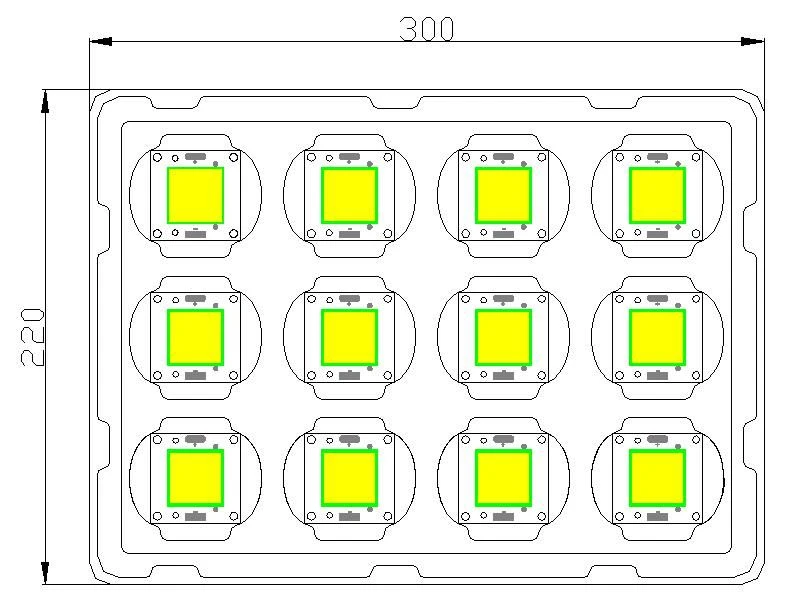

Ntim qhov ntevntawm 20W 4046 COB LED Flip Chip rau Toj Roob Teeb
Cov Txheej Txheem
Qhov ntim kom tsawg: 16pcs / phaj, 10plate hauv lub hnab nqus.
Daim ntawv thov ntawm 20W High Fais COB LED
Siv dav hauv Dej nyab Lub Teeb, Toj roob hauv pes teeb, Qhov Teeb Pom Kev thiab lwm yam ....
Tuam txhab taw qhia
Shenzhen Guangmai Electronics Co., Ltd, nrog 30 tag nrho cov kab ntau lawm tsis siv neeg, uas tuaj yeem tsim 100KK SMD LED ib hlis, 3KK COB LED ib hlis, 10KK lwm LED rau ib hlis. Thiab peb muaj ib qho ntawm kev paub ntau R& D pab neeg nyob hauv lub ntiaj teb, los ntawm kev ua kom zoo thev naus laus zis.
Kev sib tw kom zoo dua ntawm peb cov LEDs:
1. Muaj kev tiv thaiv zoo, 50000 teev lub neej, 2-5 xyoo warranty.
2. Kws tshaj lij engineers thiab cov neeg ua haujlwm paub txog.
3. Lub sijhawm luv xa, feem ntau 1-7 hnub ua haujlwm.
4. Kev siv cov kev cai tshwj xeeb muaj nyob hauv CCT, CRI, Lumen, VF, Xim, thiab lwm yam.
5. Ntau yam module hom, xws li SMD LED, 1-5W siab zog LED, 1-1500W sib xyaw ua ke LED ..
Cov FAQ
A: Hauv kev ua lag luam thoob ntiaj teb, GMKJ yog tus paub zoo raws li cov kev paub thiab cov kws ua khoom siv LED ua khoom.Q: Koj puas yog cov chaw tsim khoom lossis chaw lag luam?
Q: Koj puas muab cov qauv dawb?
A: Yog, Peb yuav muab cov qauv dawb rau P02 LED (1W siab zog LED, 6 koob 3W RGB LED), 3030 SMD LED, 5050 SMD LED, 3535 RGB LED, 3535 RGBW LED, thiab lwm yam.
Q: Ua li cas txog lub sijhawm ua hmoov txhuas?
A: Nws nyob ntawm kev txiav txim qhov ntau. Feem ntau, lub sijhawm ua hmoov txhuas yog li 5-7 hnub ua haujlwm. Rau cov qauv, cov khoom xa tuaj yeem ua ceev ceev ib hnub.
Q. Koj puas muaj MOQ txwv rau qhov kev txiav txim coj teeb? Cas' s cov qauv them nyiaj?
A: MOQ yog 100pcs rau txhua tus qauv. Peb lees txais Alibaba Kev Lag Luam Kev Lag Luam (Credit card lossis T / T), Paypal, thiab Western Union them nyiaj.
Q. Yuav ua li cas cov txheej txheem kev txiav txim rau cov coj?
A: rau qee yam khoom lag luam, koj tuaj yeem yuav peb lub vev xaib ncaj qha; txwv tsis pub, thov hu rau peb qhov muag muag: Ua ntej, qhia rau peb paub koj qhov yuav tsum tau lossis daim ntawv thov.
Q: Yog tias LED tsis ua haujlwm, koj tuaj yeem pab txhawb li cas?
A: Cov neeg siv khoom muab cov duab ntawm cov khoom tsis raug lossis cov qauv raug tsis lees paub, lub tshuab yuav tshawb xyuas qhov tsis ua tiav thiab nrhiav qhov laj thawj. Yog tias qhov tsis ua hauj lwm tau tshwm sim los ntawm cov khoom lag luam zoo, peb yuav them nrog tsim nyog hloov!
