50W 100W IR 850nm COB LED

50W 100W IR 850nm COB LED Specs:

Khoom npe	50W 100W IR 850nm COB LED
Tshooj naj npawb	GJZ-J050R845-10C5C-G1D2
Chips hom	Taiwan Epiled 42mil
Tswv yim	14-18dc 1750mA
Lub zog hluav taws xob	7500-10000mW ntawm 1750mA rau pem hauv ntej tam sim no
Teeb pom kev zoo	Invisible IR teeb, tsis hais txog LPW
Xim	Cov ntaub ntawv nrog 845-855nm; Tab sis peb muaj peev xwm ua hauv qab wavelength rau IR LEDs: 730-740nm 805-810nm 830-835nm 845-855nm 940-950nm
Hwj chim	50 Watt zog ntsuas rau cov khoom teev. Peb muaj peev xwm ua tau 20-100 Watt infrared cob coj ntawm no rau koj.
Pob khoom	Copper board
Lub teeb pom kev zoo	120 degree teeb pom kev zoo kaum sab xis
Hom thiab manufacturers	GMLEDs, GMKJ
Warranty	4 xyoo
Kev pabcuam OEM	1. SKD qhov chaw muaj; 2. Customized LED PCB boards nrog qhov loj koj xav tau yog OK ntawm no. 3. Peb tuaj yeem tsim cov leds aluminium rau pcb boards rau koj ntawm no.

Dab tsi yog qhov zoo rau IR cob coj piv nrog IR smd leds?

Qhov zoo ntawmIR COB (Chip-on-Board) LEDspiv rauIR SMD (Nto-Mounted Device) LEDstuaj yeem sau tau raws li hauv qab no:

1. Siab zog ceev

COB LEDsintegrate ntau cov chips ncaj qha rau ntawm ib qho substrate, tso cai rau kom muaj siab dua ntawm IR emitters hauv ib cheeb tsam me.

Qhov no ua rau muaj zog ntau dua thiab siv zog piv rau SMD LEDs ntawm qhov loj me.

2. Txhim kho cua sov Dissipation

COB LEDs muaj thaj chaw loj dua rau cov cua sov dissipation vim lawv qhov kev sib cuag ncaj qha nrog lub substrate.

Qhov no ua rau COB IR LEDs muaj txiaj ntsig zoo ntawm kev tswj cov cua sov, uas yog qhov tseem ceeb rau kev siv infrared uas xav tau lub zog siab thiab ua haujlwm tsis tu ncua.

3. Uniform Light Output

COB LEDs muab ib qho seamless, zoo li IR lub teeb beam, uas yog tshwj xeeb tshaj yog muaj txiaj ntsig zoo hauv kev siv xws li tshuab pom kev, khoom siv kho mob, thiab kev soj ntsuam.

SMD LEDs feem ntau tsim ntau qhov chaw teeb pom kev zoo, xav tau cov optics ntxiv los muab cov khoom tso tawm.

4. Compact Design

COB thev naus laus zis suav nrog ntau lub chips LED rau hauv ib qho kev sib cog lus, txo qhov loj me ntawm IR emitter thaum tuav lossis txawm nce nws qhov kev ua tau zoo.

SMD LEDs, txawm tias muaj ntau yam, yuav xav tau ntau chav kom ua tiav cov txiaj ntsig zoo sib xws, nce qhov chaw yuav tsum tau ua.

5. Yooj yim los ua ke thiab kev koom ua ke

COB modules yog pre-assembled nrog ntau lub chips, simplifying cov txheej txheem ntau lawm thiab sib dhos.

SMD LEDs feem ntau yuav tsum tau muab tso rau thiab soldered ib tus zuj zus, ua kom ntau lawm complexity.

6. Ntev Lifespan

Vim muaj kev tswj xyuas thermal zoo dua, COB LEDs feem ntau muaj kev ua haujlwm ntev dua, tshwj xeeb tshaj yog nyob rau hauv cov xwm txheej siab, piv rau SMD LEDs.

7. Tus nqi siv tau rau kev siv hluav taws xob siab

Nyob rau hauv high-power IR daim ntaub ntawv, siv ib tug COB LED yuav ua tau ntau nqi-zoo dua integrating ntau SMD LEDs kom ua tau zoo tib yam tso zis.

Txo cov khoom siv thiab cov nqi sib dhos ua rau kev txuag nyiaj tag nrho.

---

Thaum xaiv IR COB vs IR SMD LEDs:

Xaiv IR COB LEDsrau daim ntawv thov xav tau:

Lub zog siab thiab siv zog (xws li, kho kho, kho mob, lossis kev soj ntsuam ntev ntev).

Uniform IR tso zis nrog kev kho qhov muag tsawg kawg nkaus.

Xaiv IR SMD LEDsrau daim ntawv thov xav tau:

Saj zawg zog tsim (xws li, kev cai arrays).

Tsawg zog tso zis los yog thaum tus nqi yog qhov kev txhawj xeeb tseem ceeb rau kev ua haujlwm IR yooj yim.

Los ntawm kev nkag siab txog qhov sib txawv, koj tuaj yeem xaiv txoj cai LED hom rau kev siv IR tshwj xeeb.

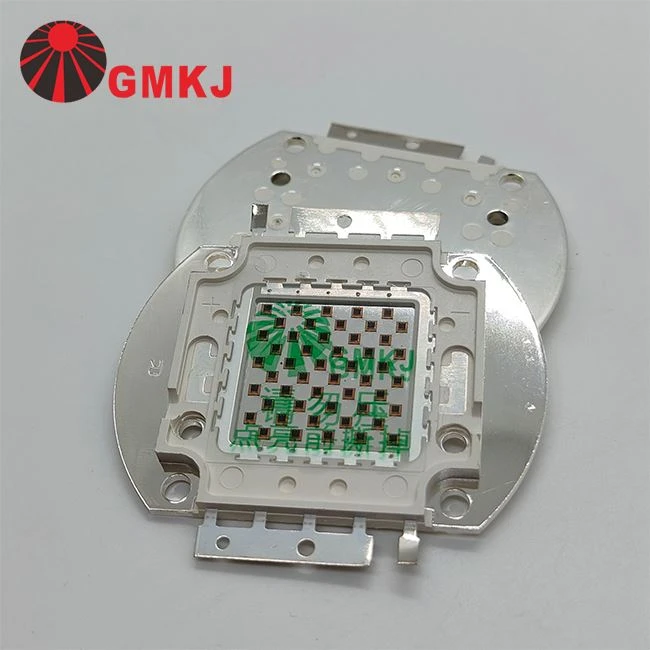

50W 100W IR 850nm COB LED Daim duab:

50W 100W IR 850nm COB LED qhov ntev:

50W 100W IR 850nm COB LED Specification:

Hauv qab no daim ntawv teev cia li 850nm 50w cob leds. Yog tias koj xav tau lwm lub wavelength lossis lwm lub zog ntsuas, thov hu rau peb ncaj qha.

Parameter	Cim	Cov xwm txheej	Min	Avg.	Max	Chav tsev
Forward Voltage	VF	IF=1750mA	14.0	--	18.0	V
Thermal Resistance Junction To Board	RΘJ-B	IF=1750mA	--	8	--	degree / W
Radiant Flux	Φe	IF=1750mA	10000		15000	mW
Peak wavelength	λp	IF=1750mA	845		855	nm
CRI	Ra	IF=1750mA	--	--	--	--
Kub Coefficient ntawm Forward Voltage	∆VF/∆T	IF=1750mA	−−	-2	−−	mV / degree
Rov qab tam sim no	IR	VR=50V	−−	−−	10	μ A
Saib lub kaum sab xis	2Θ1/2	IF=1750mA	−−	120	−−	Deg
